SKU: ERS2CO2

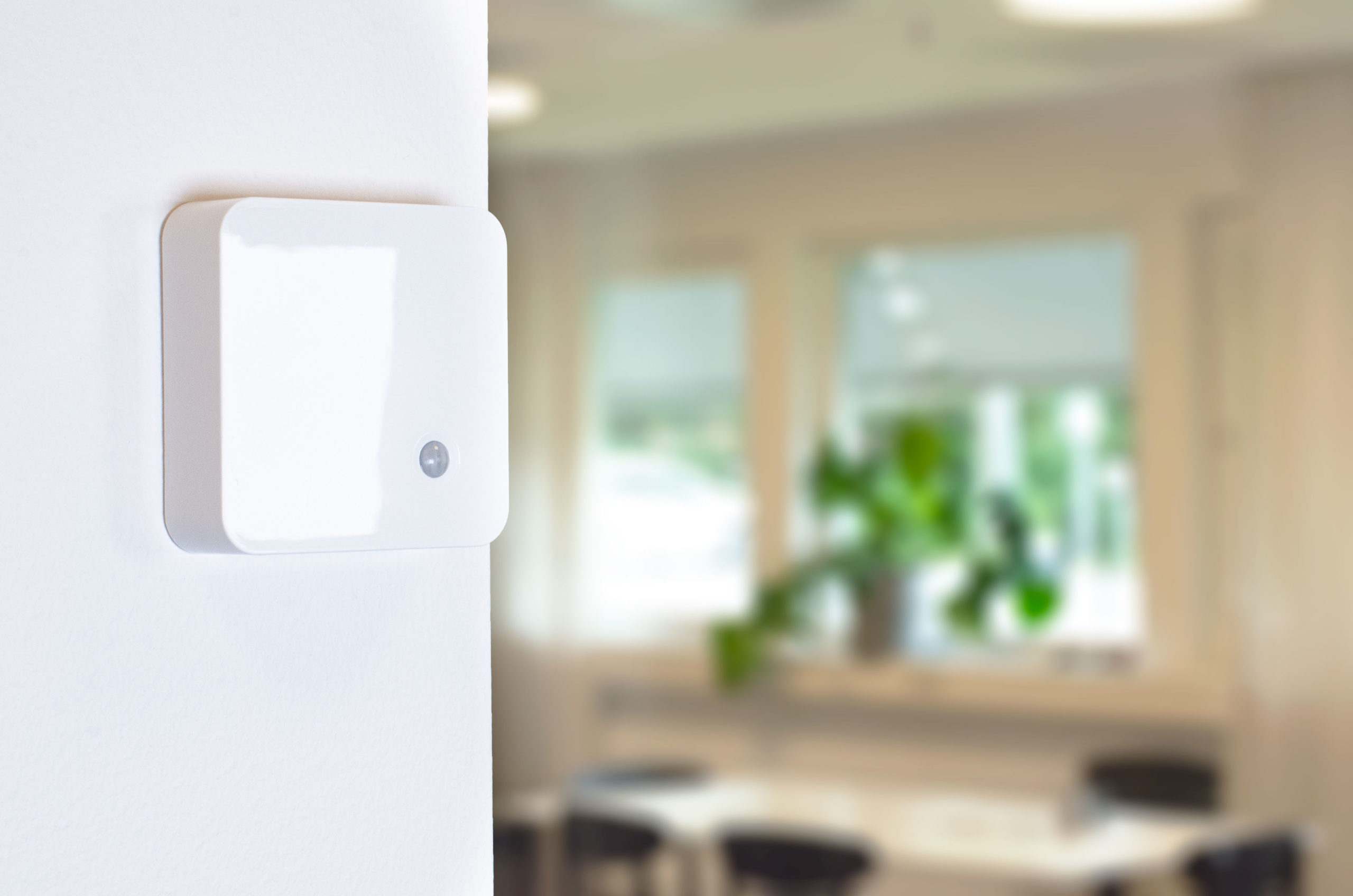

The Elsys ERS CO2 LoRaWAN Sensor measures Carbon Dioxide and other indoor environmental factors including; temperature, light, humidity and motion
Details Additional Info Data Sheet Manual£158.32*
The Elsys ERS CO2 LoRaWAN® Sensor measures Carbon Dioxide and other indoor environmental factors including:
The Elsys ERS CO2 sensor has an internal automatic calibration process. This procedure calibrates the sensor to set 400ppm to the lowest value that has been read in the last period of approximately 8 days. This means that in an 8 day period, the sensor must be exposed to fresh (well ventilated) air at least once for the calibration to work.
We can supply third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.
| Battery Type | 2 x 3.6V AA Lithium Batteries |
| Expected Battery Life | <10 years (Depending on configurations and environment) |
| Wireless Technology | LoRaWAN® 1.0.3 |
| Wireless Security | LoRaWAN® End-to-End encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| LoRaWAN® Device Type | Class A/C (configurable) End-device |
| Supported LoRaWAN® features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Available Frequency | EU868 (others are available on request) |
| Link Budget | 137 dB (SF7) to 151 dB (SF12) |
| RF Transmit Power | 14 dB / 20 dB (Region specific) |
| Weight | 80 g excluding batteries / 120 g including batteries |
| Dimensions | 86 x 86 x 27 mm |
| Enclosure | Plastic, PC/ABS |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity Range | 0 to 85% RH (non-condensing) |
All of our products are available to customers throughout Europe. For more information on shipping costs, volume pricing and lead times, please contact our technical sales team. Our technical team are also happy to advise customers on the best LoRaWAN® CO2 sensors for their specific applications on an individual project basis.
Certifications
