SKU: ELTLite

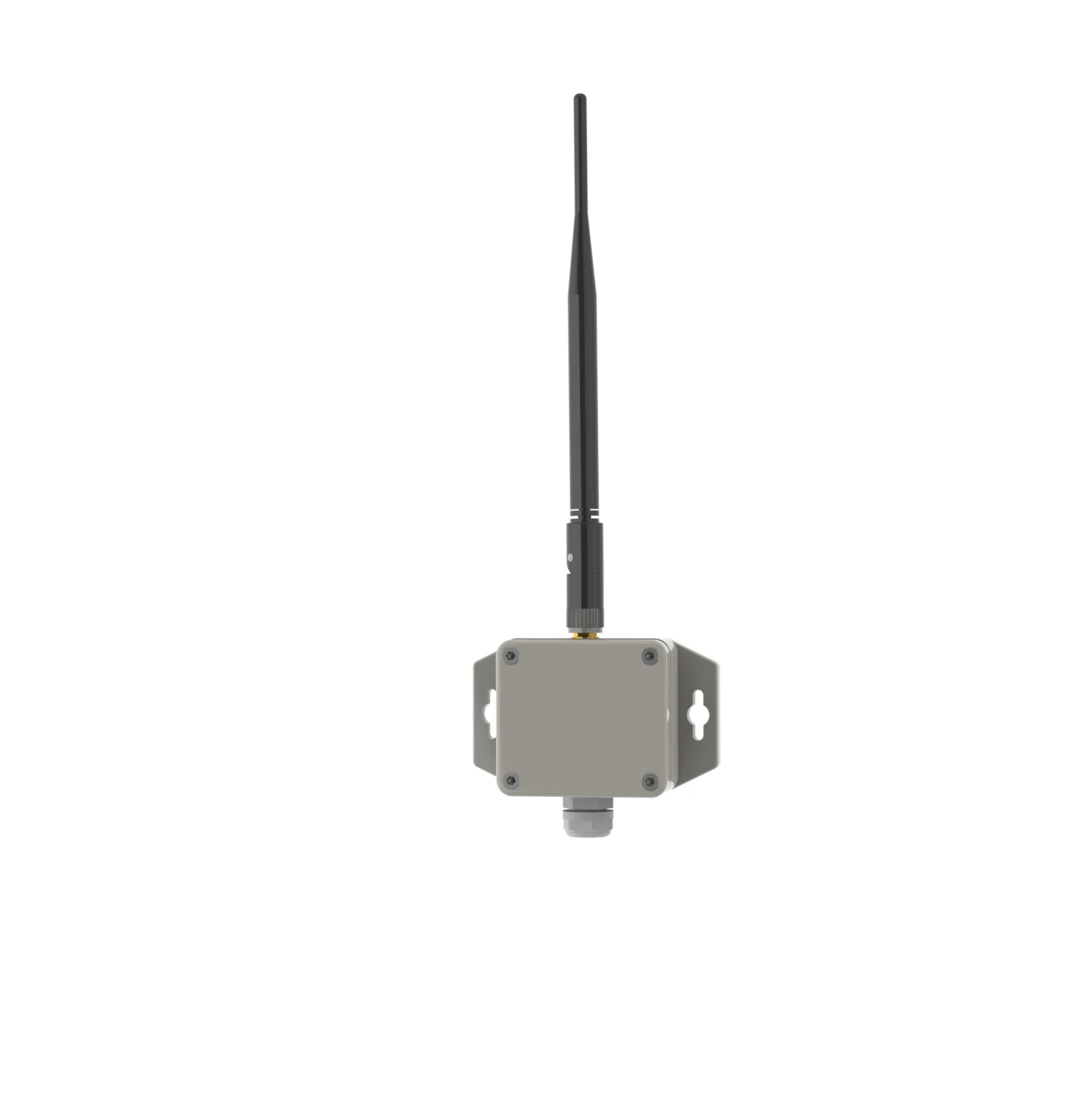

The Elsys ELT Lite is a powerful LoRaWAN® device designed to measure analogue or digital signals. It is a 1-channel GPIO wireless transceiver which can also provide power to external sensors.
Details Additional Info Data Sheet£73.47*
The Elsys ELT Lite is a powerful LoRaWAN® device designed to measure analogue or digital signals. It is a 1-channel GPIO wireless transceiver which can also provide power to external sensors.

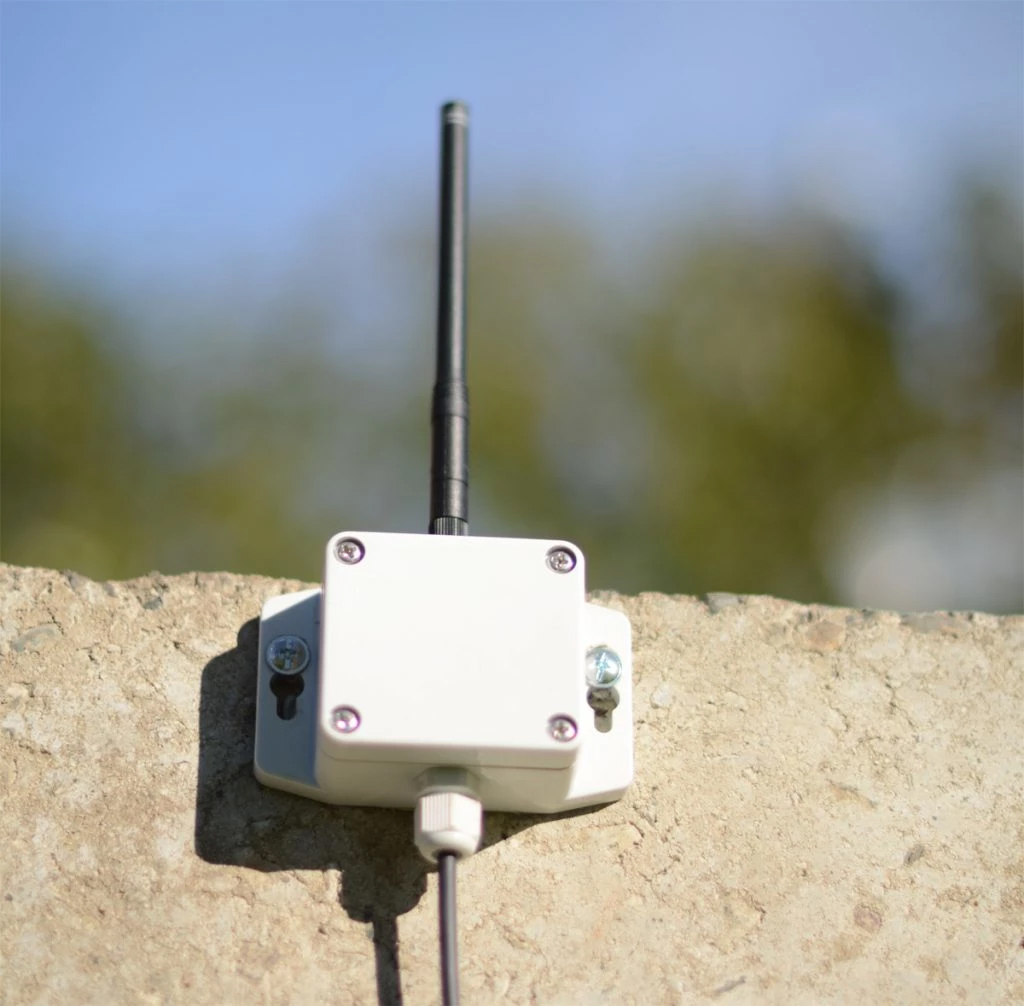

Enclosed in an IP67 rated casing, the Elsys ELT Lite can be mounted outside and will withstand extreme conditions.
Ideal for use in Smart Cities, the ELT Lite works alongside an external sensor of your choice enabling you to build your own solution. Some example uses include; electricity meters, flow meters, analogue sensors and/or moisture sensors.
With one generic input, the Elsys ELT Lite can be configured to measure external temperatures, pulse counting, analogue input, water leaks, switches plus much more!
| Battery Type | 1 x 3.6V AA Lithium Battery |
| Expected Battery Life | <10 years (Depending on configurations and environment) |
| Wireless Technology | LoRaWAN® 1.0.3 |
| Wireless Security | LoRaWAN® End-to-End encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| LoRaWAN® Device Type | Class A/C (configurable) End-device |
| Supported LoRaWAN® Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dB (SF7) to 151dB (SF12) |
| Available Frequency | EU868 (others available on request) |
| RF Transmit Power | 14 dB / 20 dB (Region specific) |
| Weight | 60 g excluding batteries / 100 g including batteries |
| Dimensions | 94 x 59 x 35 mm |
| Enclosure | IP67 |
| Direct Connection to: | 1-wire temperature sensor |
| Operating Temperature | –40 to 60°C (85°C with external power supply) |
| Operating Humidity | 0 to 100% RH |
Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects. All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
Certifications
