SKU: I420LR_FND_S

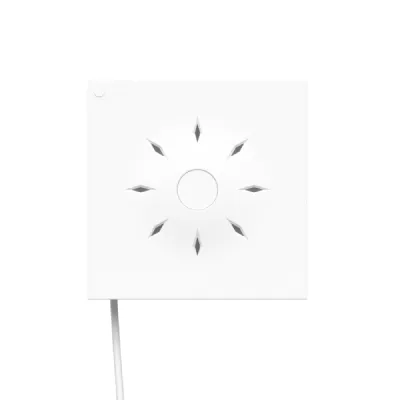

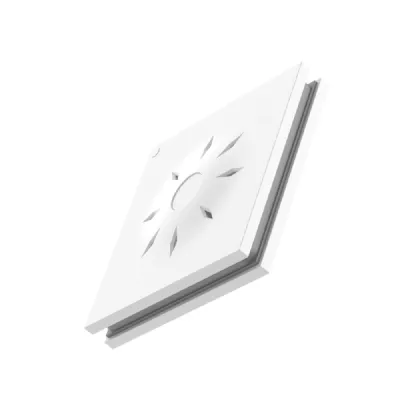

Measure indoor CO2 levels with the Nexelec Carbon LoRaWAN® CO2 sensor.
Details Additional Info Data Sheet Manual£183.79*
The Nexelec AERO CO2 IoT sensor combines 3 sensors in 1, allowing you to remotely monitor Carbon Dioxide, temperature and humidity levels in your indoor environments. This smart device will analyse your indoor conditions every 10 minutes and alert you to any need for ventilation.
Monitoring Carbon Dioxide levels in your environments can help to ensure optimal conditions in a number of areas, including:
With an in-built three-colour LED indicator, users of this CO2 IoT sensor can easily identify any changes in CO2 levels, alerting you to a need for ventilation. The trigger threshold for alerts can be easily configured using Nexelec’s TOUCH application which is accessible through wireless NFC technology.

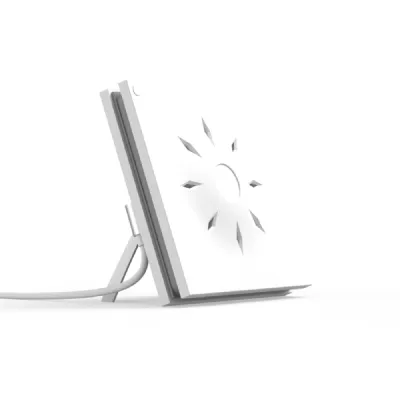

Suitable to be wall or ceiling mounted, the Nexelec AERO CO2 has a range of mounting options available to purchase separately.
With a discreet design, the Nexelec CO2 IoT sensor can be easily integrated into any surroundings and are simple to install.
This smart device transmits recorded data to a connected LoRaWAN® gateway. The data is then sent to Nexelec’s Navixis platform or your chosen third-party dashboard for visualisation by a LoRaWAN® network server.
| Certification | CE certified |
| Signal Type | LoRaWAN® |
| Carbon Dioxide Sensor | Technology: Non-Dispersive Infrared (NDIR) Resolution: 20 ppm Accuracy: ±(50 ppm + 3% of measuring range) Measurement Range: 0 - 5000 ppm |
| Temperature Sensor | Resolution: 0.1°C Accuracy: ±0.3°C Measurement Range: -30°C / +70°C |
| Humidity Sensor | Resolution: 0.5% RH Accuracy: ±2% RH Measurement Range: 0 - 100% RH |
| Frequency of Measurements | Every 10 minutes (configurable) |
| Dimensions | 105mm x 105mm x 30mm |
| Operating Temperature | 0°C to 50°C |
| Relative Humidity | 0% RH to 95% RH |
