SKU: VS351-868M PN: White
The Milesight VS351 is a high-precision LoRaWAN people counting sensor, perfect for monitoring foot traffic.
Details Additional Info Data Sheet Manual
Variants:
This innovative people counter combines cost-effectiveness, high accuracy, and low power consumption. Utilizing thermopile and radar technologies, it precisely counts people passing through designated areas in and out.
The advanced people counter excels in bi-directional tracking, offering real-time and reliable data with an extensive detection range. It maintains high accuracy through its sophisticated AI algorithm, which effectively filters out side-by-side and U-turn walkers.
Battery Version: For wire-free installation, choose the battery version, which leverages both thermopile and radar technologies. Enjoy a completely wireless setup, eliminating extensive wiring or infrastructure modifications.

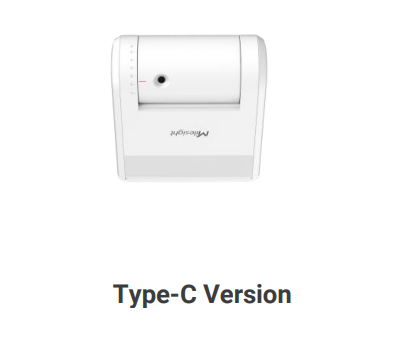

Type-C Version: For extended use, the Type-C version is ideal. Using thermopile technology, it connects directly to a power source, ensuring continuous operation without battery concerns.
It ensures reliable and precise data collection with an accuracy of 95%. When counting single-person passages exclusively, the wireless people counter achieves an exceptional accuracy rate of up to 99%. This level of precision allows you to rely on the collected data for critical decision-making confidently.
Experience cutting-edge precision with multi-sensor fusion. Utilizing radar to activate, the people counter delivers unparalleled accuracy with an advanced thermopile sensor. Simultaneously, a dedicated temperature sensor ensures the device performs flawlessly within ideal environmental conditions.
| Power Supply | 1. 5V/1A by Type-C Port (Both Versions) 2. 4 x 9000 mAh ER26500 Li-SOCl2 Replaceable Batteries (Battery Version Only) |
| Battery Life | Around 1.6 Years (30-min Interval, 25°C, 1000 People per Day ) |
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz) / 19 dBm (470 MHz) / 22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Operating Temperature | -20°C ~ 60°C |
| Relative Humidity | 0% ~ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimension | Type-C Version: 70 x 68 x 32 mm ( 2.76 x 2.68 x 1.26 in) Battery Version: 188 x 68 x 32 mm ( 7.40 x 2.68 x 1.26 in) |
| Material & Color | PC (Flame Retardant), White |
| Installation | Ceiling Mounting, Lintel Mounting |
