SKU: EM300-MCS-868M

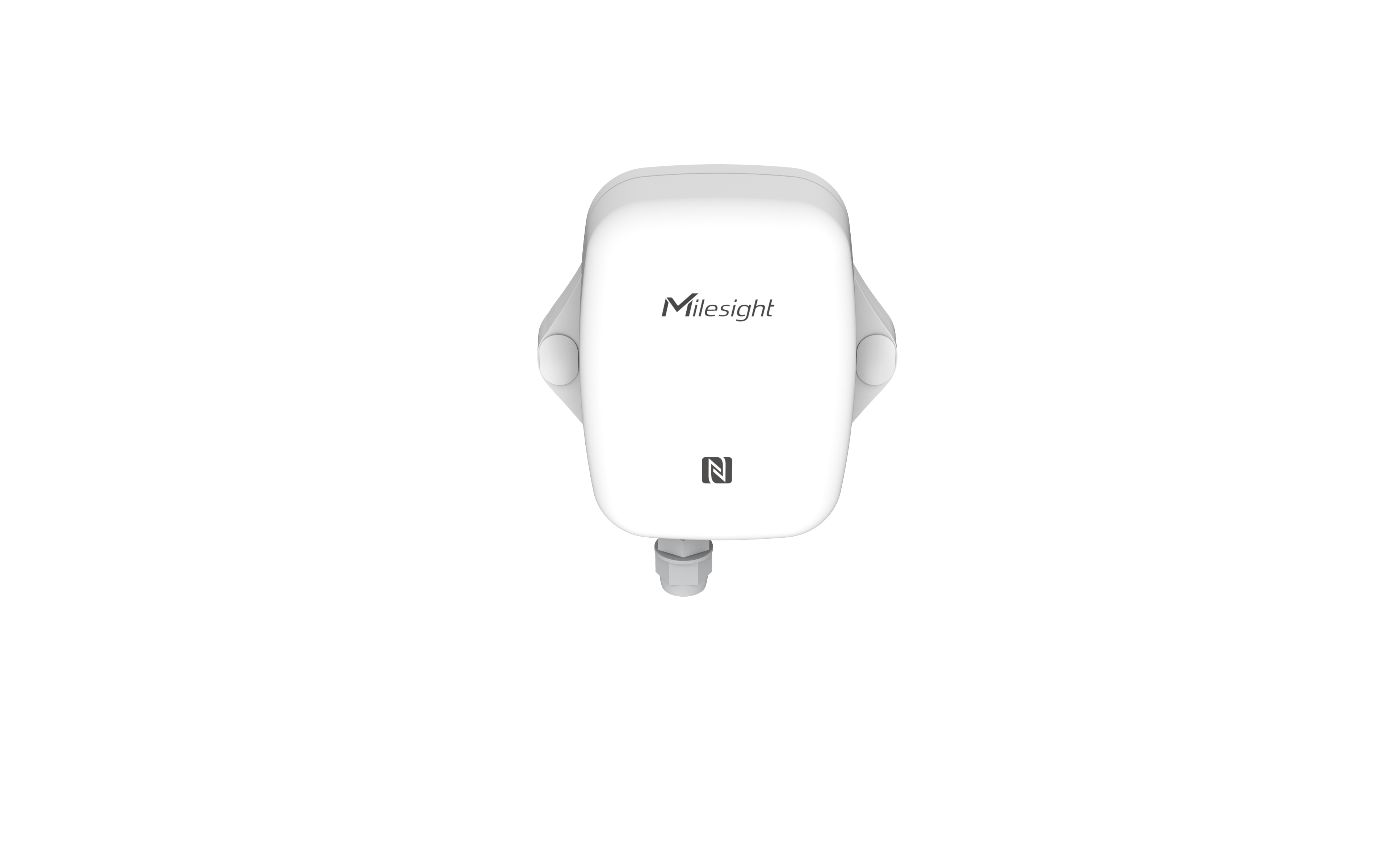

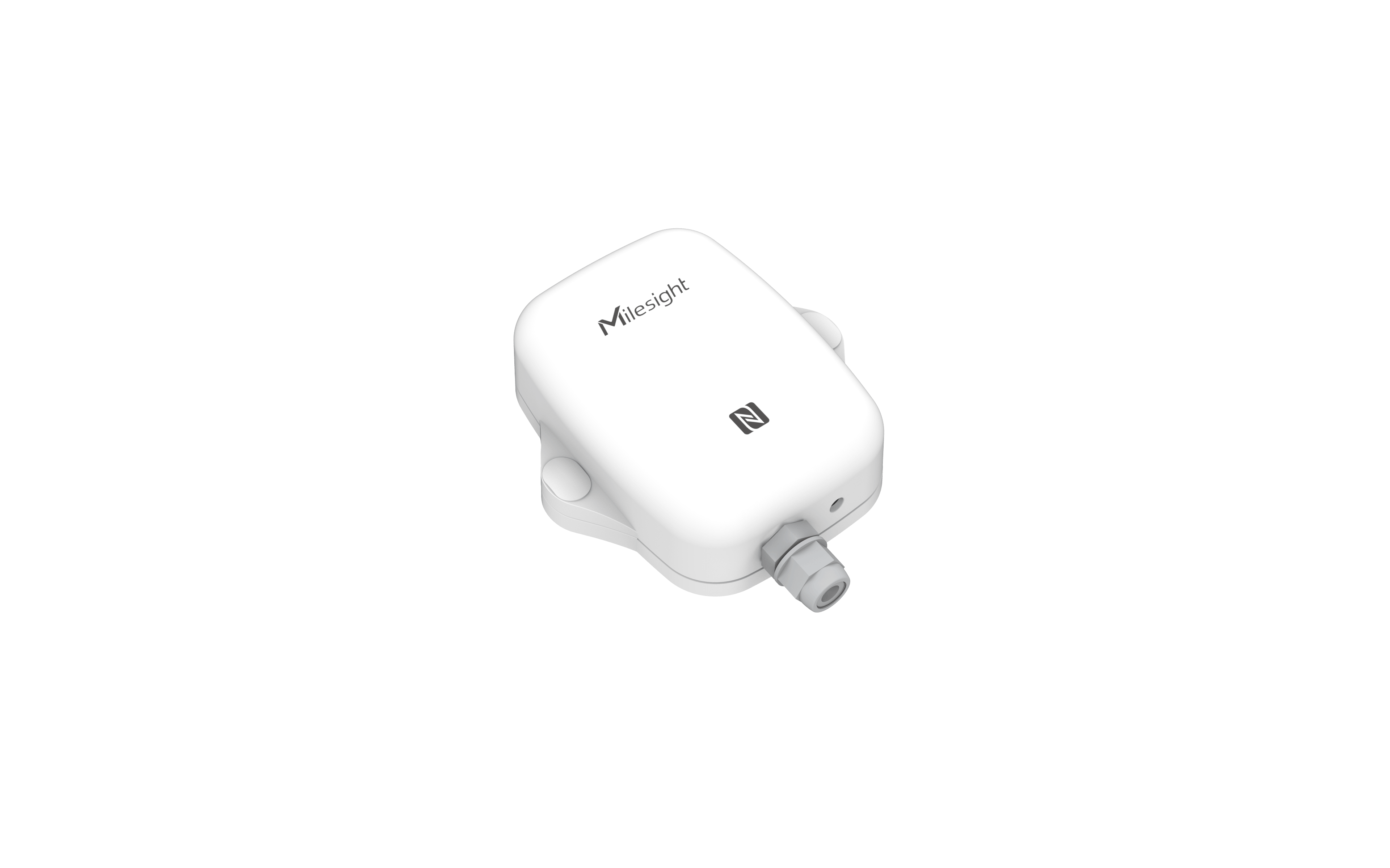

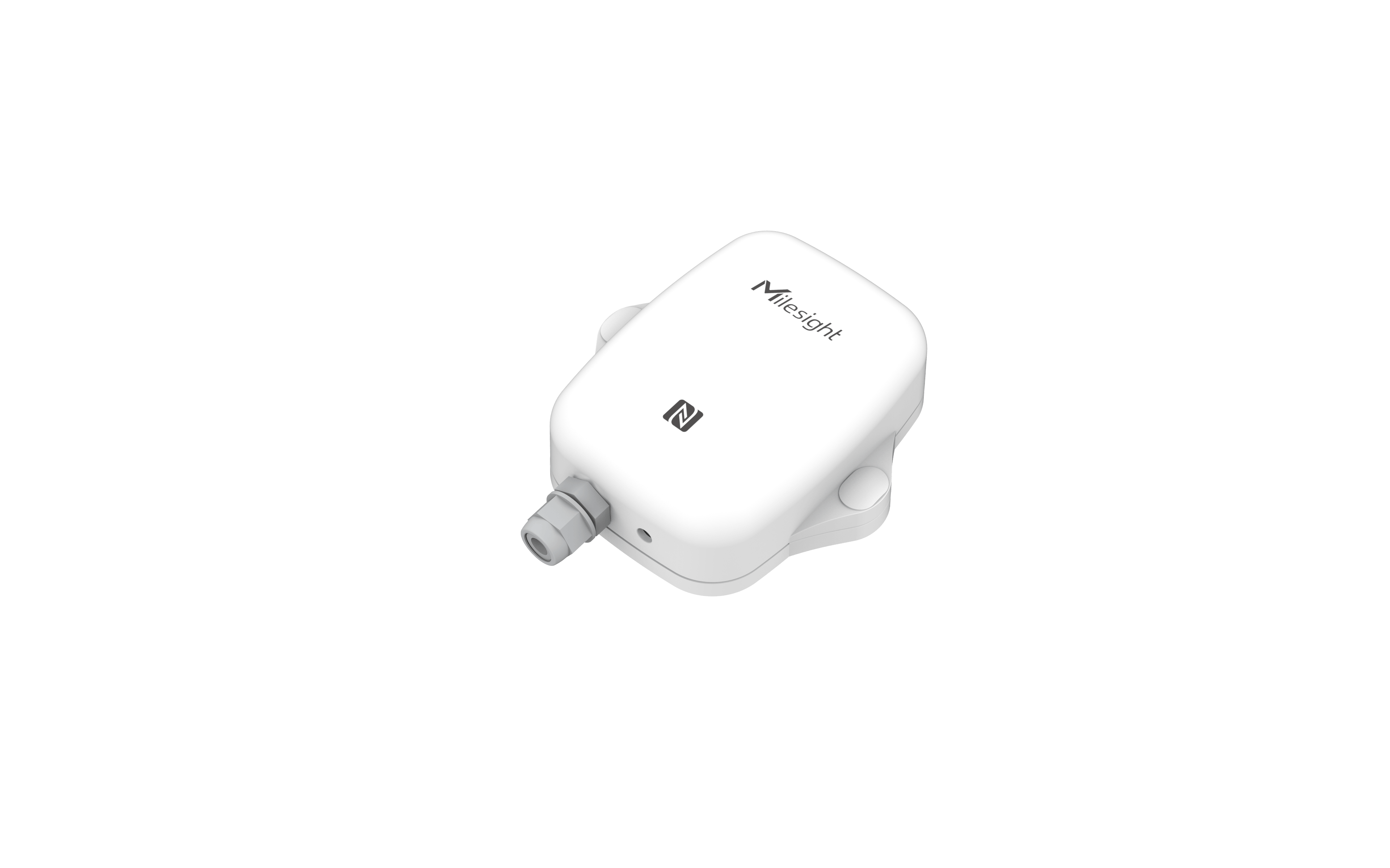

The Milesight EM300-MCS is a compact magnet switch sensor with embedded temperature and humidity sensors for detecting the open/close status of objects (such as doors or windows).
Details Additional Info Data Sheet Manual

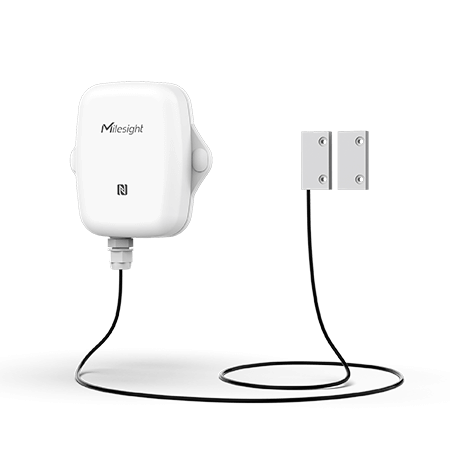

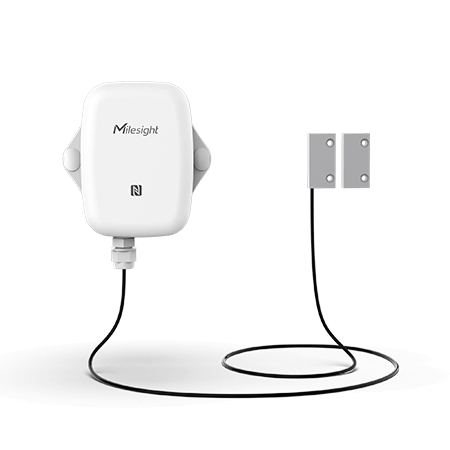

The Milesight EM300-MC magnetic contact switch sensor is ideal for those looking to secure premises. Designed to monitor the opening and closing of doors, this LoRaWAN® sensor can be used to:
This smart sensor can be configured to raise automatic alerts when doors or windows are opened, enabling you to take further action if required.

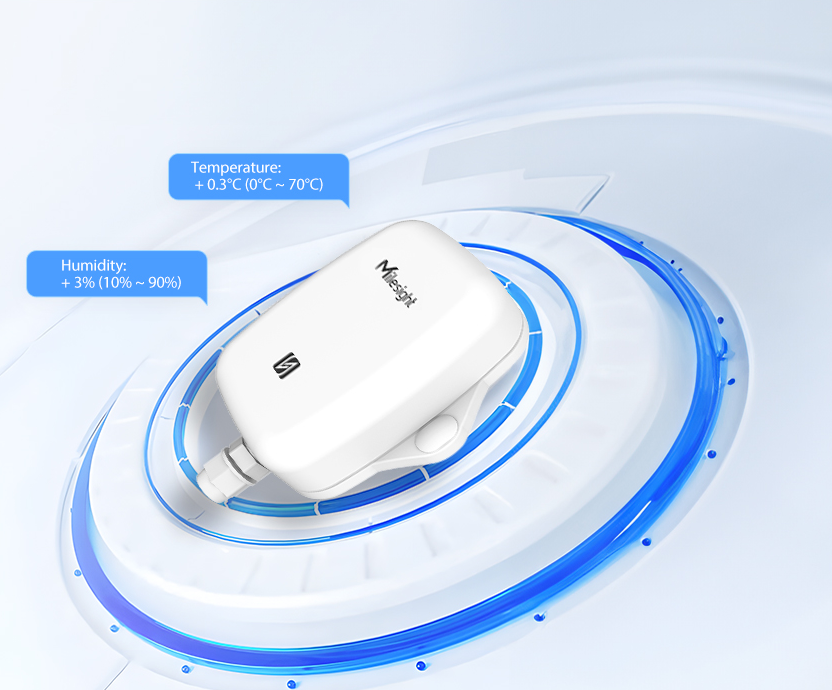

For added functionality, the EM300-MC also features in-built temperature and humidity sensors enabling you to monitor the environmental conditions in your area.
Utilising LoRaWAN® technology, the EM300-MCS will transmit data to the connected LoRaWAN® gateway via a LoRaWAN® network. This data can then be visualised through the Milesight IoT Cloud or through your chosen third party platform.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Magnetic Contact Sensor | |
| Detection Distance | 20 ~ 30 mm |
| Cable Length | 1.5 m |
| Temperature Sensor | |
| Range | -30°C ~ +70°C |
| Accuracy | 0°C ~ +70°C (± 0.3°C), -30°C ~ 0°C (± 0.6°C) |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Range | 0% ~ 100% RH |
| Accuracy | 10% ~ 90% RH (± 3%), below 10% and above 90% RH (± 5%) |
| Resolution | 0.5% RH |
| Transceiver Dimensions | 105.6 × 85.3 × 27 mm |
| Magnet Dimensions | 32 × 15 × 8 mm |
| Installation | Wall Screw Mounting, 3M Tape Mounting |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0% ~ 100% (Non-condensing) |
| Ingress Protection | IP67 |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery |
| Battery Life | Up to 10 Years (1 × ER18505 Battery) Up to 10 Years (2 × ER18505 Batteries, Extended Version) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical team. Our technical team are also happy to advise you on the best LoRaWAN® Magnetic Contact Switch Sensor for your specific applications on an individual project basis.
Certifications
