Product Description

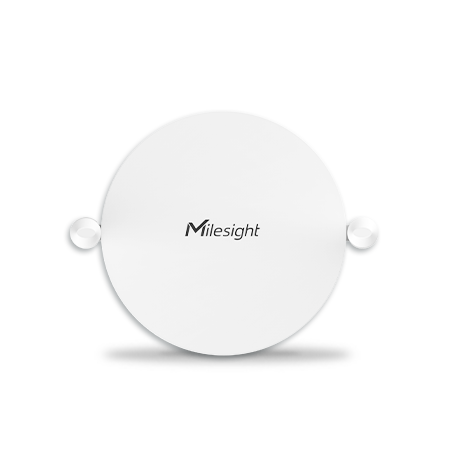

The Milesight UG63 Mini LoRaWAN Gateway is a compact yet powerful 8-channel indoor gateway designed to bridge the gap in your IoT network. Ideal for areas where aesthetics are paramount, this discreet, disc-like gateway suits any professional office, retail, or hotel environment. Compliant with standard LoRaWAN® sensor and network servers.

What is a LoRaWAN Gateway?

Wondered what a LoRaWAN® Gateway is? A LoRaWAN® gateway acts as the "bridge" between your LoRaWAN®-enabled sensors and the internet (the Network Server). It listens for radio messages from sensors, such as temperature, occupancy, or air quality monitors, and forwards that data via an IP connection (Ethernet or 4G) to your management platform.

Available Variants & 4G Backhaul

The UG63 is available in two primary configurations to suit your infrastructure:

• Standard (PoE/Ethernet): Ideal for buildings with existing wired infrastructure.
• 4G Cellular Backhaul: This variant includes a built-in cellular module for independent connectivity.

Why choose a 4G Backhaul Gateway? 4G backhaul is essential for "wire-free" deployments. It allows you to install the gateway in locations where pulling an Ethernet cable is too costly or physically impossible. It also serves as a critical failover backup; if your primary wired internet connection fails, the gateway can automatically switch to 4G, ensuring your data transmission remains uninterrupted.

Exceptional Coverage

Despite its "mini" size, the UG63 delivers professional-grade performance. In urban environments, it provides reliable coverage up to 2 km, penetrating walls and floors in complex indoor settings. In open areas with line-of-sight, it can reach up to 15 km.

For additional functionality, users can expand their coverage through Milesight's Gateway Fleet feature. This allows the UG63 to be used as an "agent" gateway to fill blind spots in a larger network anchored by a controller gateway (such as the UG65 or UG67).

Ideal For:

• Smart Buildings and Offices
• Smart Cities
• Industrial IoT
• Healthcare

Variants Available

Features

• High-performance NXP industrial processor with large memory.
• Equipped with an SX1302 chip for handling higher traffic with lower power consumption.
• Flexible Mounting: Suitable for desktop, wall, or ceiling mounting (brackets included).
• Listen Before Talk (LBT): Reduces signal interference and improves downlink reliability.
• Compatible with mainstream network servers, including The Things Industries, Chirpstack, and Loriot.
• Built-in network server and MQTT/HTTP/HTTPS API for easy integration.

Parameters
