SKU: VS121-868M-White
The Milesight VS121 is an AI powered workplace sensor featuring LoRaWAN® technology.
Details Additional Info Data Sheet Manual
Variants:

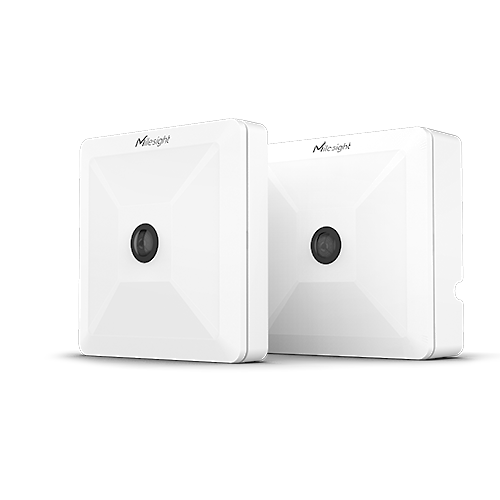

Better understand your workplace environment with the Milesight VS121 AI workplace sensor.
Powered by AI technology, the VS121 features LoRaWAN® technology to use anonymous people counting data to help you better understand and utilise your environments. Available in five different variants, this is a flexible device, designed to deliver the data you require.
With a recognition rate of up to 95% and the ability to sense people in areas of up to 126m2, it's the ideal device for those looking to gain real insights into footfall and traffic.
Suitable applications include:
Thanks to its unique U-shape recognition technology, the VS121 is able to filter out people who may be wandering within a specific area, ensuring your data is accurate. This can be particularly useful in retail environments where people may stay in one area for a longer period of time.
With Milesight's people flow analysis tool, you are also able to set parameters of the area you would like to monitor people's movement. This will count people within your mapped area regardless of the direction they are moving in, allowing you to identify hot area statistics and carry out effective people flow analysis.
Recorded data is transmitted over a LoRaWAN® network, helping to secure any privacy concerns. Based on the standard LoRaWAN® protocol, the VS121 connects to a LoRaWAN® gateway and can then be visualised by your preferred dashboard or through Milesight's IoT Cloud.
| Product Code | Colour | Field of View | Installation Height | PoE |
|---|---|---|---|---|
| VS121 Occupancy Sensor White | White | 190° Horizontal, 112° Vertical | 2.5m to 4m | X |

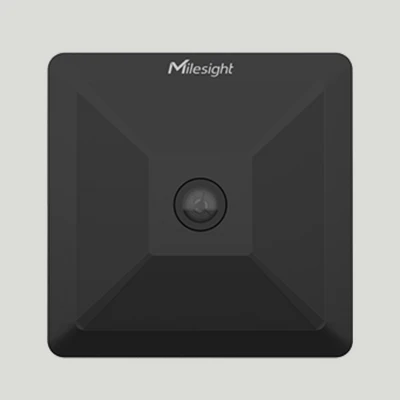

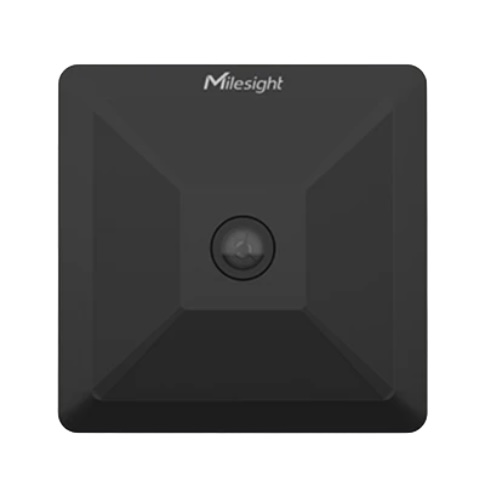

| VS121 Occupancy Sensor Black | Black | 190° Horizontal, 112° Vertical | 2.5m to 4m | X |
| VS121 Occupancy Sensor PoE White | White | 190° Horizontal, 112° Vertical | 2.5m to 4m | ✓ |
| VS121 High Ceiling Mount Occupancy Sensor PoE | White | 129.4° Horizontal, 68.4° Vertical | 5m to 7m | ✓ |
| VS121 High Ceiling Mount Occupancy Sensor | White | 129.4° Horizontal, 68.4° Vertical | 5m to 7m | X |
Still not sure which device is right for you? Check out Milesight's Coverage Calculator.
| *LoRaWAN® counters are not intended for real time notification, recorded data will be periodically transmitted based on your chosen configuration. Sensor accuracy will rely on network resiliency and device manufacturer. |
| Field of View | Standard Version: Up to 190° Horizontal, 112° Vertical High Ceiling Mount Version: Up to 129.4° Horizontal, 68.4° Vertical |
| Installation Height | Standard Version: Between 2.5m and 4m High Ceiling Mount Version: Between 5m and 7m |
| Regional People Counting & Dwell Time Detection | Up to 16 areas (up to 10 sides for each area) |
| Protocol | LoRaWAN® and Milesight D2D |
| Available Frequencies | EU868, CN470, IN865, RU864, US915, AU915, KR920, AS923-1&2&3&4 |
| Sensitivity | -137 dBm @300bps |
| Ethernet Port (PoE Version only) | 1 x RJ45 10/100 Mbps (PoE PD) |
| Ethernet Isolation (PoE Version only) | 1.5 kV RMS |
| Network Protocol (PoE Version only) | MQTT(s), HTTP(s), RTSP, NTP, SSH, BACnet/IP |
| WiFi (Standard Version only) | IEEE 802.11 b/g/n, 2.4GHz (AP mode for configuration) |
| Operating Temperature | -5°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | -0 to 95% (Non-condensing) |
| IP Rating | IP30 |
| Housing | PC & Cast Aluminum |
| Dimensions | 85 x 85 x 20mm |
| Weight | Standard Version: 126.9g High Ceiling Mount Version: 186g |
| Installation | Ceiling Mount |
| Power Input (PoE Version Only) | 2-pin 3.5mm Terminal Block |
| Power Supply (Standard Version) | DC 5V / 2A Type-C Port |
| Power Supply (PoE Version) | 1. DC 5V / 2A by Terminal Block 2. 802.3af PoE |
| Power Consumption (Standard Version) | 3.5W |
| Power Consumption (PoE Version) | 1. DC 3.5W 2. PoE: 4.5W |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® People Counting sensors to suit specific project requirements.
Certifications
