SKU: SD01-L
Monitor water temperature across multiple locations with the IoT water temperature sensor from Wavetrend.
Details Additional Info Data Sheet Manual
Variants:

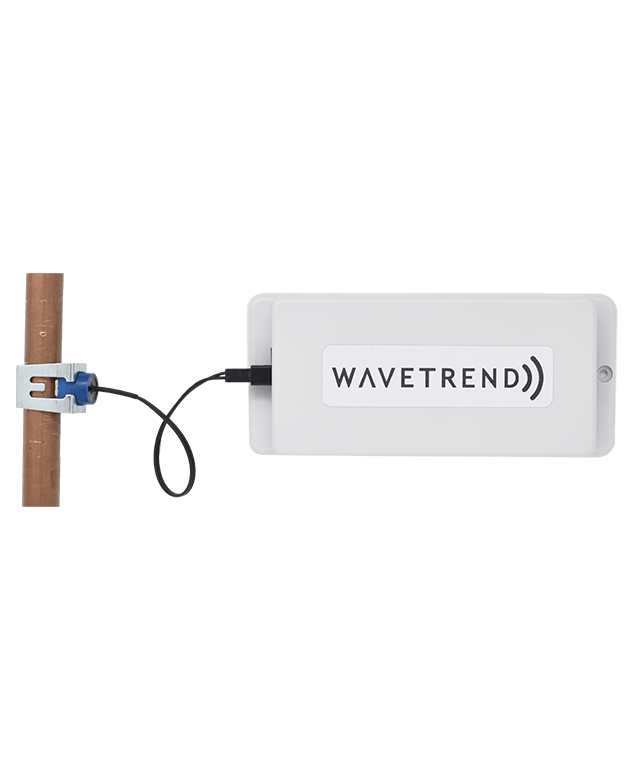

Monitor water temperature across multiple locations with the IoT water temperature sensor from Wavetrend. Ensure your premises water supply systems meet the statutory obligations with this easy to install clip on water temperature monitor.
Ideal for complying with legislation set by the HSE, this device can help to reduce the risk of Legionella. The IoT water temperature sensor actively monitors hot, cold and blended water flow to allow you to create automated alerts and daily reports. The recorded data is transmitted by a LoRaWAN® gateway and network server enabling you to take timely action. Alerts can also be configured to immediately notify users of temperatures recorded outside of your set parameters i.e. pipes freezing or scalding water.
With a battery life of up to 10 years, the Wavetrend water temperature monitor offers a fast return on investment by reducing the need for regular on-site visits.
| Input Power | ‘A’ size, primary lithium-thionyl chloride (Li-SOC12) battery |
| Voltage | 3.6V |
| Capacity | 3,600mAh |
| Frequency | LoRaWAN® 868MHz |
| Antenna Type | Integrated, 2.5dBi |
| Type | Up to 3 NTC thermistor temperature sensors with pipe clip fixings |
| Range | -27 to +100°C |
| Accuracy | 1% |
| Pipe Clips | To suit a range of pipe diameters |
| Cable Length | 1m length standard, terminated with Molex SL series plug |
| Dimensions | 130mm x 65.5mm x 25.5mm |
| Weight | 130g |
| Environment Temperature Range | -10°C ~ 60°C |
| Environment Humidity Range | 95% RH (No Condensation) |
| Protective Casing | IP54 Rated |
Please note: This product requires 1, 2 or 3 sensor nodes
Partcode: Wavetrend Sensor Nodes
RRP: £4.19+VAT
With IoT you can remotely monitor your legionella risk through the use of specialist LoRaWAN® sensors. Thanks to our smart solutions, you can eliminate the risk of human error or gaps in temperature monitoring which can arise when logs are manually recorded.
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
Our technical sales team are also happy to advise customers on the best LoRaWAN® water sensors to suit specific project requirements.
