Adeunis Field Test Device LoRaWAN

SKU: ARF8123AA

Qualify and validate your network with the Adeunis Field Test Device.

Details Additional Info Data Sheet

£216.30*

Product Description

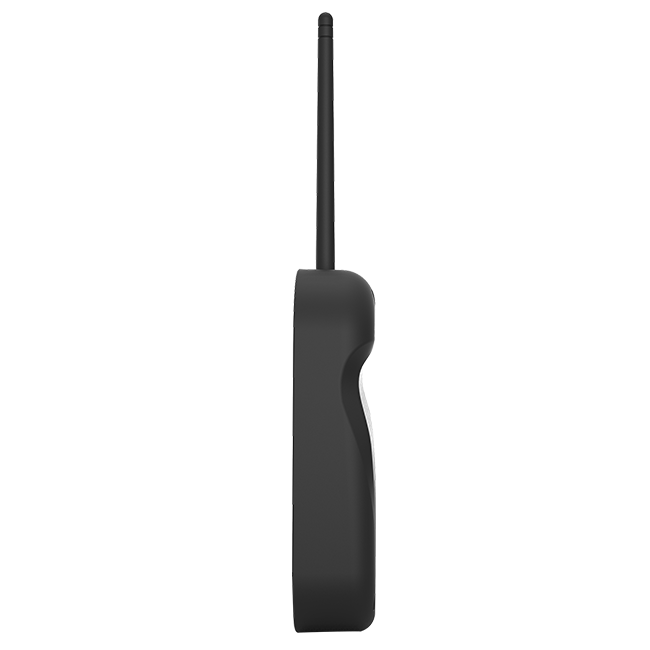

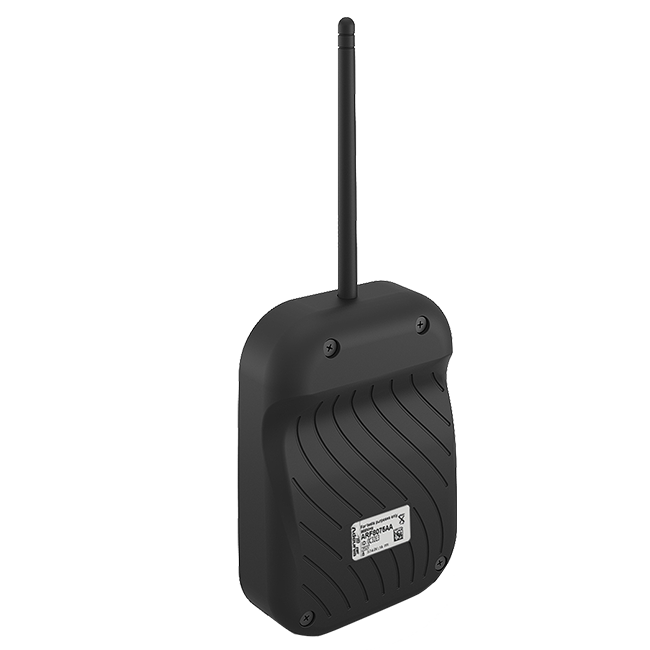

Qualify and validate your network with the Adeunis Field Test Device. Ensure optimum positioning of your LoRa sensors with immediate viewing of network coverage data.

Features

Ready-to-use device
Equipped with rechargeable battery
LoRaWAN® Class A compatible
Communicate with all network operators using the LoRaWAN® V1.0 protocol
Transmit and receive radio frames to instantly view results
Specifically adapted for application validation, such as communicating sensors, tracking, smart building, metering, security and M2M
Up to 15km range (depending on environment)

Parameters

Communication	LoRaWAN® protocol & LoRa Modulation (3.6V2400mah/section)
LoRaWan Specification compliant	V1.0.1
Radio Rate	Variable (SF12/125kHz (~183 bps) to FSK (~50kbps)
RF Power	14dBm (25mW)
Sensitivity	down to -140 dBm in SF12/CR4
Available Frequency	EU868 (others are available on request)

Connector	Micro-USB - 5V - 500mA
Battery	Lithium-Ion Polymer 3.7V 2Ah 7.4Wh

Device configuration	Via AT commands
Serial rate	115.2 kbps
Parity	None
Amount of data	8
Stop bit	1

Dimensions	186.2mm x 75.2mm x 22.8mm
Weight	140g

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.

Discount trade prices available
Speak to the team
