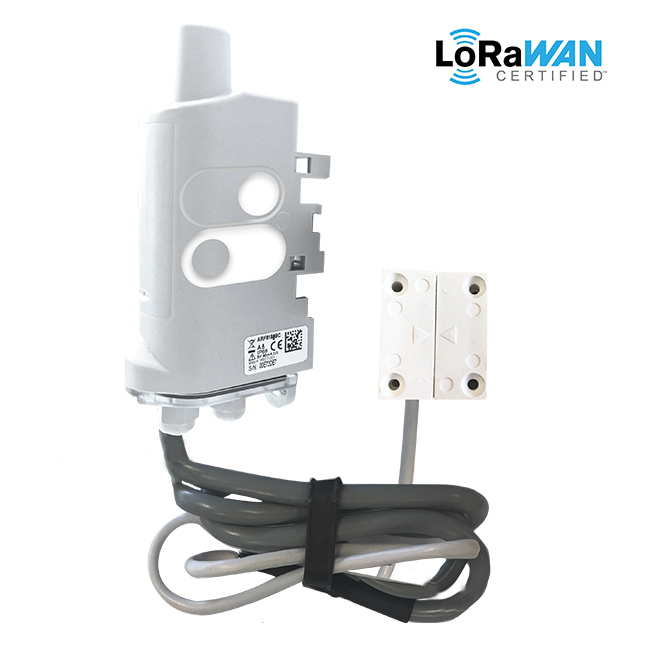

Adeunis Contact Sensor Lorawan Bundle Dry Contacts IP68 and Contact Sensor EU868

SKU: ARF8170BCA-B01

Detect the opening/closing of doors with the Adeunis Contact Sensor.

Details Additional Info Data Sheet

£125.64*

Product Description

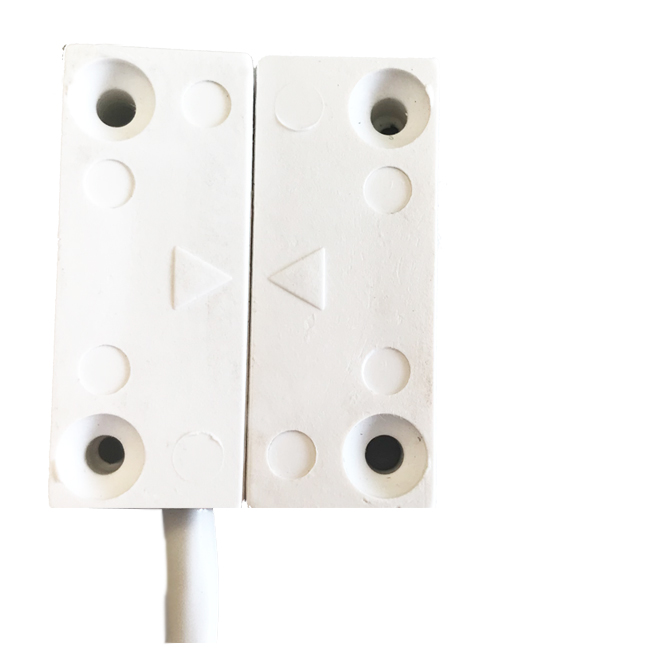

Detect the opening/closing of doors with the Adeunis Contact Sensor. Ideal for a variety of applications this sensor combines a dry contact transceiver with a proximity switch and magnet set. Simply attach the proximity switch to your chosen door to:

Ensure doors are closed in cold storage areas and refrigerators
Monitor when secure premises are accessed
Prevent intrusion
Maintain records of the number of times an area is accessed

Utilising LoRaWAN® technology, the Adenuis Contact Sensor can be configured to raise alarms when activity is detected. Data recorded by the sensor is transmitted periodically via a LoRaWAN® gateway and network server enabling you to view the collected information on your chosen dashboard. This information could then be used to optimise efficiencies in cleaning regularly used areas or to address potential issues in cold areas before they arise. For peace of mind, this contact sensor features an in-built cable cut detection which will automatically alert you to any potential tampering.

Features

Wireless range of up to 10 km (depending on environment)
Robust IP67 rated casing (IP68 available on request)
Transmission on event (alert) or periodic (counting)
Built-in cable cut detection
Monitor the opening/closing of doors

Parameters

Available Frequency	LoRaWAN: EU863-870
Sleeping Current	25uA
Wake up Current	7mA
Receiving Current (Max)	11mA/3.3V
Transmitting Current (Max)	127mA/3.3V
Battery Voltage Measurement Accuracy	±0.1V
Current Measurement Accuracy	<+-1%
Current Measurement Accuracy Range	10A to 630A (depending on the current transformer configuration)

Dimensions	14mm x 38mm x 8.7mm
Operating Temperature Range	-10°C ～ 85°C
Cable Length	Approx 1.2m
Casing	IP67 Rated
Max Operating Distance Between Magnets	15mm

Dimensions	105mm x 50mm x 27mm
Operating Temperature Range	-25°C ～ 70°C
Battery	Replaceable Battery
Casing	IP67 Rated (IP68 available on demand)

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical team. Our technical team are also happy to advise you on the best LoRaWAN® Contact Sensor for your specific applications on an individual project basis.
