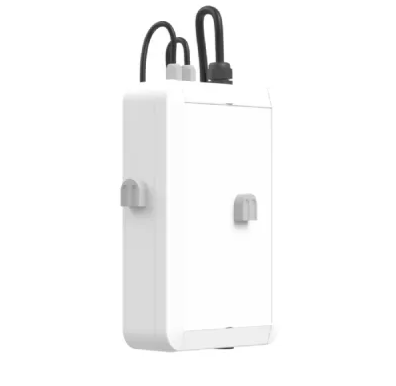

Nexelec PMo AC Outdoor Air Quality Micro-station

SKU: I950LR_FND_AC_S

The Nexelec PMO LoRaWAN Outdoor Air Quality Sensor is a comprehensive device which enables you to remotely monitor outdoor air quality conditions and fine particle emissions.

Details Data Sheet

£1,912.38*

Product Description

The Nexelec PMO LoRaWAN Outdoor Air Quality Sensor is a comprehensive device which enables you to remotely monitor outdoor air quality conditions and fine particle emissions. This smart microstation will quickly detect instances where PM1, PM2.5 and PM10 levels are too high. Combined with temperature and humidity sensors, it’s the ideal device to build up a better picture of your outdoor environmental conditions. This can be particularly useful to:

Improve air quality
Protect public health
Ensure compliance with regulations
Identify pollution sources
Monitor climate change
Support research and development

For assured accuracy, the fine particle sensor is validated by an independent metrology lab. To ensure optimal accuracy, the sensor heats air to record reliable data without any impact from the ambient humidity. With the option to either wall or pole mount this device, it has a backup battery and integrated GPS making it easy for you to deploy and monitor your device in even the most remote locations. When it comes to powering this device, you can select to use mains power with a battery back-up or there is also a solar-powered version available (solar powered variant SKU - I950LR_FND_PV_S). This smart device transmits recorded data to a connected LoRaWAN® gateway. The data is then sent to your chosen third-party dashboard for visualisation by a LoRaWAN® network server.

Features

Outdoor Air Quality Micro-station
Option to power by mains or by Solar
Combines temperature, humidity, PM and pressure sensors in one
LoRaWAN® Device
Simple and fast to install
LoRaWAN certified device

Parameters

Power input

Mains + battery back up
OR
Photovoltaic panel + battery back up
Battery backup time: Up to 5 days

Temperature Measuring Range	-30°C to 70°C
Operating Relative Humidity	0% RH to 95% RH
Humidity Measuring Range	0% RH to 100% RH
Particulate Matter: PM1, PM10	Measuring range: 0 - 1000 μg/m3
Particulate Matter: PM2.5	Measuring range: 0 - 1000 μg/m3
Atmospheric Pressure	Measuring range: 300 - 1200 hPa
Measurement Transmission Frequency	Every 15 minutes

Operating Temperature	-10°C to 70°C
Temperature Measuring Range	-30°C to 70°C
Size	280mm x 200mm x 65mm

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our LoRaWAN® products are available for distribution across Europe. To find out lead times and shipping costs, please get in touch with our sales team.

Our technical team can also advise as to which products would work best for your IoT project; and help with provisioning devices and setting up your LoRaWAN® network server.

Discount trade prices available
Speak to the team
