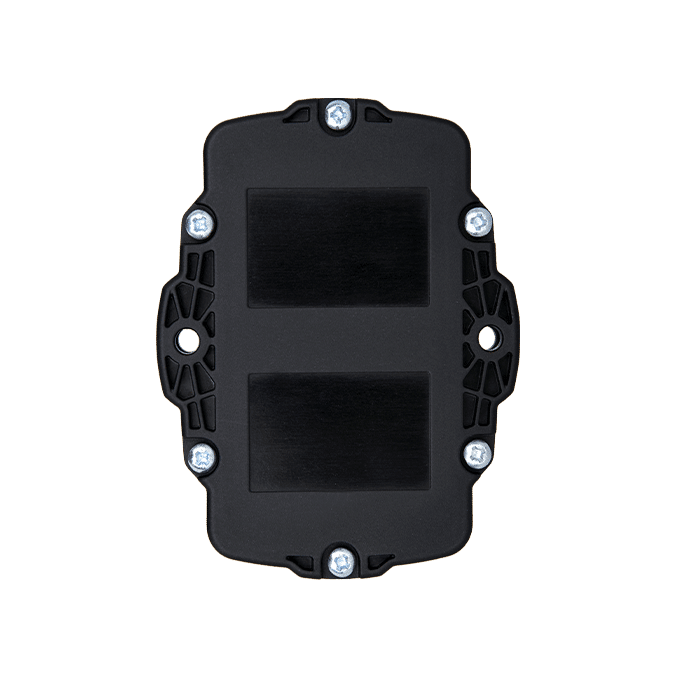

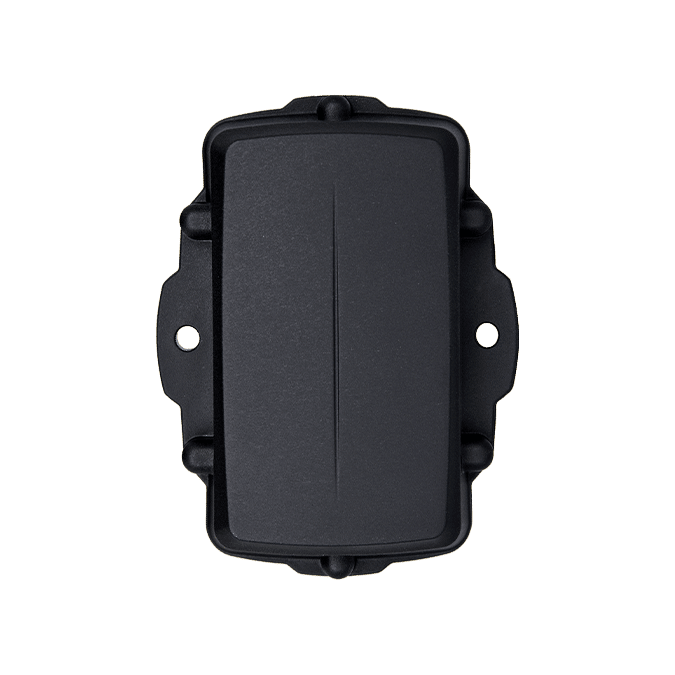

Digital Matter Oyster Edge 4G (CAT-M1 / NB-IoT)

SKU: OYSTER-EDGE-4G

Create your own affordable Asset Management solution with the Oyster Edge from Digital Matter. Combining a cellular IoT tracking device and Bluetooth gateway in one.

Details Additional Info Data Sheet

£196.10*

Product Description

Digital Matter's Oyster edge combines an NB-IoT tracking device and Bluetooth gateway in one. Ideal for indoor and outdoor asset tracking and management. This NB-IoT tracking device can be used to:

Track high value pallets and packages
Monitor the location of hospital equipment and trolleys

Suitable for use in areas where GNSS-only devices may fail. The Oyster Edge is a cellular LPWAN device which offers NB-IoT or LTE-M connectivity. With an in-built Bluetooth gateway, this compact device can also be used to report on nearby Bluetooth tags and sensors. Simply attach Bluetooth tags or sensors to other assets to create an affordable asset management solution.

With a battery life of up to 10 years, users of this NB-IoT tracking device can rest assured that they are deploying a robust solution.

Recorded data can be configured to be transmitted periodically or through movement-based tracking.

Housed in an ultra rugged IP68 casing, the Oyester Edge NB-IoT tracking device can be used in harsh environments.

With the option to use NB-IoT or LTE-M connectivity, the Oyster Edge can be easily set up. Simply insert your cellular IoT SIM card and away you go! Contact us today to check cellular IoT coverage in your deplyment area.

Features

Can be connected by LTE-M or NB-IoT
Combines an NB-IoT Tracking Device & Bluetooth Gateway in one
Long battery life up to 10 years
Reports on nearby Bluetooth tags and sensors for an affordable tagged asset management solution
Bluetooth® 5.2
Rugged & weatherproof IP68 rated casing
Easy to install
Provides GNSS, Wi-Fi AP MAC address Scanning and Cell Tower location fallback for seamless indoor/outdoor asset management
Adaptive tracking options
Supports roaming between networks
Flexible configuration

Parameters

Battery	3 x AA Lithium batteries
Input Voltage	3-5.5V DC

Connectivity	NB-IoT or LTE-M (Cat-M1)
Bluetooth	Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors (Beaconing support planned)

Weight	157g
Dimensions	108mm (L) x 86mm (W) x 30mm (H)
Case Materials	Ultra-rugged & waterproof IP68 and IK07-rated housing
Operating temperature	-30°C to +60°C
Environmental Protection	IP68 Rated
Cellular Antenna	Internal
GPS Antenna	Internal
WiFi Antenna	Internal
3-Axis Accelerometer	3-Axis Accelerometer to detect movement, high G-force events and more

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.

Our technical sales team are also happy to advise customers on the best NB-IoT tracking device to suit specific project requirements.

For simple deployment and ongoing management of your NB-IoT solutions, check out our cellular IoT middleware platform, Symbius. Designed to enable you to make the most of your data, Symbius will take the headache out of decoding your data for you.
