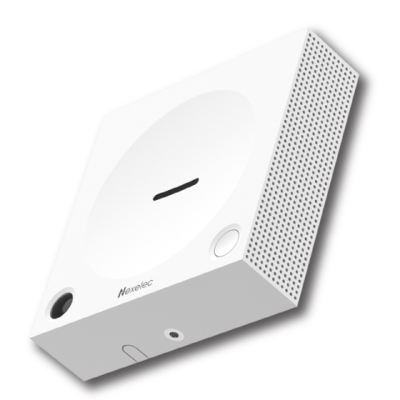

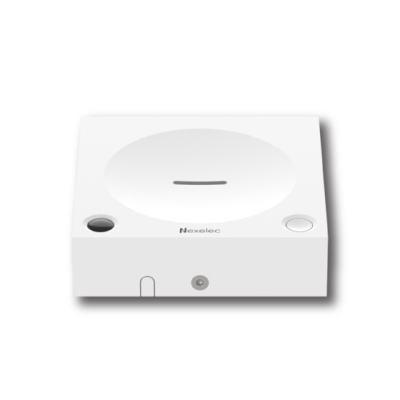

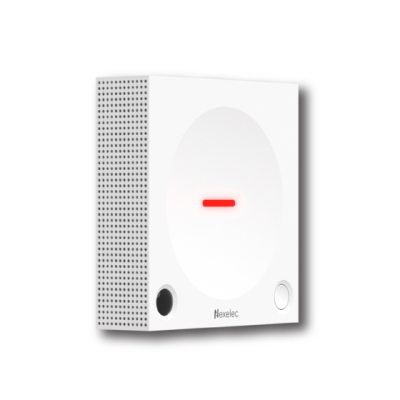

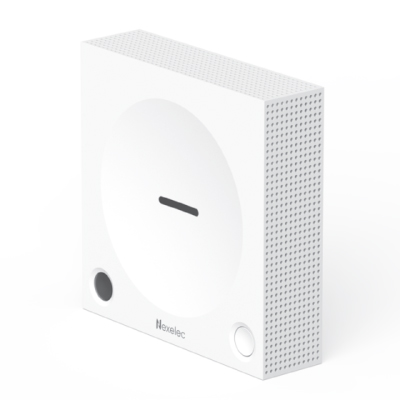

Nexelec SIGN 7-in-1 Smart sensor

SKU: X565LS

Monitor 7 parameters in one with the Nexelec SIGN LoRaWAN Indoor Air Quality Monitor.

Details Data Sheet Manual

£166.62*

Product Description

The Nexelec SIGN indoor air quality monitor is a 7-in-1 LoRaWAN® room sensor designed to monitor indoor air quality. With this compact device, you can remotely monitor;

Temperature
Humidity
CO₂
VOCs (Volatile Organic Compounds)
Noise
Brightness
Presence

Ideal for environments such as offices, workshops, factories and schools. This indoor air quality monitor enables you to manage ventilation in enclosed spaces and protect occupants’ health by limiting exposure to pollutants that may be present in damp or dusty environments. The Nexelec SIGN is rigorously tested to guarantee operation in extreme temperatures of between -20°C to 50°C and 0 – 99% relative humidity. This device also has a sensor calibration certificate issued by a COFRAC-accredited laboratory. Housed in a sleek unit, the Nexelec SIGN indoor air quality monitor is simple to install, with the option to wall mount, flush-mount or free-stand the device. For added functionality, this sensor also features an audible signal and visual light indicator which changes green, orange or red according to the active CO₂ level. The trigger threshold can be remotely configured via wireless NFC or LoRaWAN®. For those looking to protect their data, the SIGN air quality sensor has a built-in micro SD card to provide back up for up to 10 years of sensor data which can help to protect your solutions in the event of a power cut. This smart device transmits recorded data to a connected LoRaWAN® gateway. The data is then sent to the smartphone app and/or your chosen third-party platform for visualisation by a LoRaWAN® network server.

Features

7-in-1 sensor which combines CO₂, temperature, humidity, VOCs, Noise, Brightness and Presence sensors in one
Monitors indoor air quality
Features integrated audible & visual alerters
Saves recorded data on an integrated SD card for back up
Complies with the French standards for measuring CO₂ concentration indoors
LoRaWAN® Device

Parameters

Power input

2 x replaceable lithium batteries

Signal Type

LoRaWAN®

Operating Temperature	-20°C to 50°C
Relative Humidity	0% RH to 99% RH
Size	87mm x 87mm x 23mm
Certification	CE and UKCA certified

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our LoRaWAN® products are available for distribution across Europe. To find out lead times and shipping costs, please get in touch with our sales team.

Our technical team can also advise as to which products would work best for your IoT project; and help with provisioning devices and setting up your LoRaWAN® network server.

Discount trade prices available
Speak to the team
