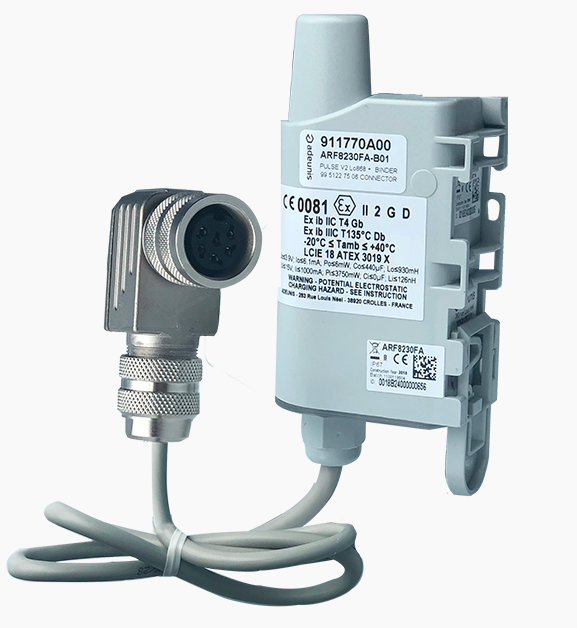

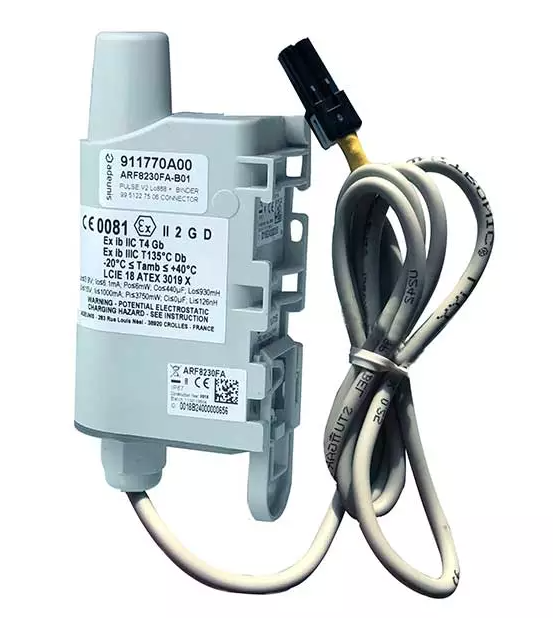

Adeunis Pulse V4 IP68 Lorawan

SKU: ARF8230FA-B01

The Adeunis Pulse Counter enables you to remotely monitor energy consumption via the LoRaWAN protocol.

Details Additional Info Data Sheet

Variants:

Product Description

The Adeunis Pulse Counter enables you to remotely monitor energy consumption via the LoRaWAN® protocol. This DIN-Rail device can be easily connected to existing energy meters to measure electrical pulses. Ideal for monitoring water and electricity, this device supports the connection of 2 meters simultaneously.

This energy monitoring sensor can also be used to detect leaks and to report potential tampers by monitoring the meter flow rate. The Adeunis Pulse Counter can also be useful in monitoring energy consumption and performance.

For added simplicity, this device can be configured both locally and remotely. Recorded data can then be transmitted at your selected intervals via a local LoRaWAN® network.

LoRaWAN® technology allows for extended battery life as small packets of data are sent via radiowaves to a centralised LoRaWAN® gateway. The nature of LoRaWAN® technology means that these small packets of data can be transmitted over long distances – up to 10km (depending on environmental conditions).

This device is compatible with a range of LoRaWAN® gateways which then push the data to a LoRaWAN® Network Server (LNS) then on to the application server. The application server is where you’ll be able to view and analyse your data, create alerts and identify faults.

ATEX Rated Pulse Counter

Similar to the Adeunis Pulse Counter, the ATEX version is DIN-Rail mountable and can be connected to 2 meters simultaneously. Certified to be used with flammable gases, mists or vapours or combustible dusts, this device enables you to monitor energy efficiencies.

Ideal for applications such as Smart Buildings and Smart Manufacturing, the Adeunis Pulse ATEX is suitable for use in the following areas:

Gas and Steam

Zone 1: immediate proximity to the sensitive area
Group 11C: Hydrogen gases and vapours, acetylene etc.

Dust

Zone 21: immediate proximity to the sensitive area

Features

Wireless range of up to 10 km (depending on environment)
Integrated fastening system: DIN-Rail, tube, wall mount, flange
Monitor water and/or electricity

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.

Discount trade prices available
Speak to the team
