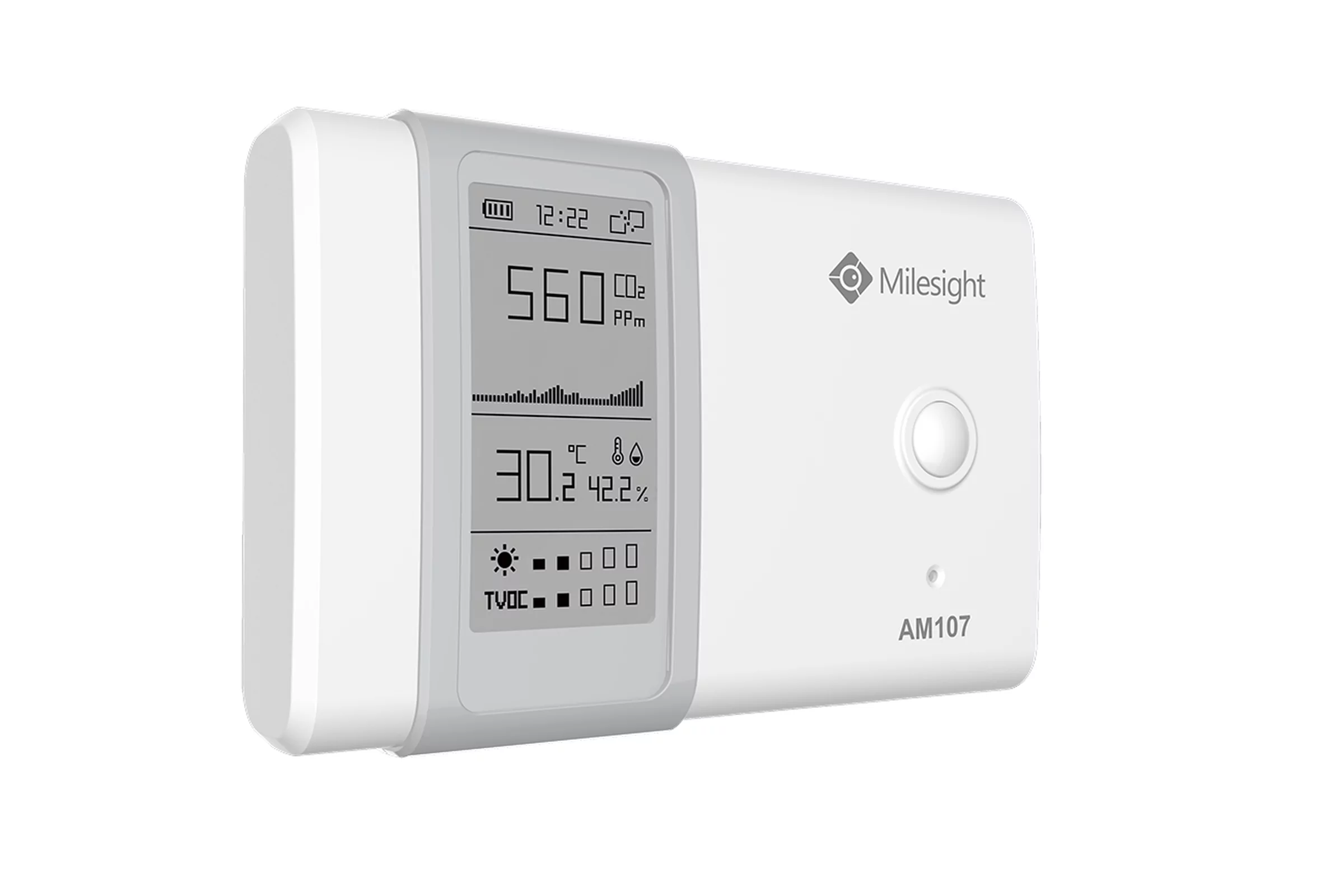

Milesight AM107 Indoor Ambience Monitoring Sensor with 7 Sensors and E-ink Display EU868

SKU: AM107-868M

Discover smart indoor ambience monitoring with the AM100 Series.

Details Additional Info Data Sheet Manual

£208.08*

Product Description

Explore the AM104 and AM107 Indoor Ambience Monitoring Sensors, perfect for measuring temperature, humidity, light, CO2 concentration, TVOC, barometric pressure, and motion. These sensors feature an E-Ink screen for real-time data display and use LoRaWAN® technology for efficient, low-power communication. Milesight offers seamless integration with their IoT Cloud solution, enabling users to manage and monitor environmental data remotely and effectively.

Ideal for various environments like offices, stores, classrooms, and hospitals, the AM104 and AM107 sensors provide a comprehensive view of indoor air quality and environmental comfort. These sensors are designed to work with replaceable AA batteries for up to one year, making them a reliable and cost-effective choice for continuous monitoring. Additionally, both models are equipped with NFC for easy setup, and the AM107 comes with a Type-C port for further configuration options.

The AM104 and AM107 sensors are not only compact and efficient but also highly versatile. They offer a robust set of features including real-time data display, long battery life, and seamless integration with Milesight’s LoRaWAN® gateways and IoT Cloud solutions. Whether you are monitoring air quality in a healthcare setting or optimizing comfort levels in a commercial space, these sensors provide valuable insights for any application.

Features

Integrated sensors for temperature, humidity, light, CO2, TVOC, barometric pressure, and motion detection
Real-time environmental data displayed on a 2.13-inch E-Ink screen
Long battery life with replaceable AA batteries (AM104: 1.5 years, AM107: 1 year)
Easy configuration via NFC and USB Type-C port
LoRaWAN® compatibility for long-range, low-power communication
Seamless management with Milesight IoT Cloud solution

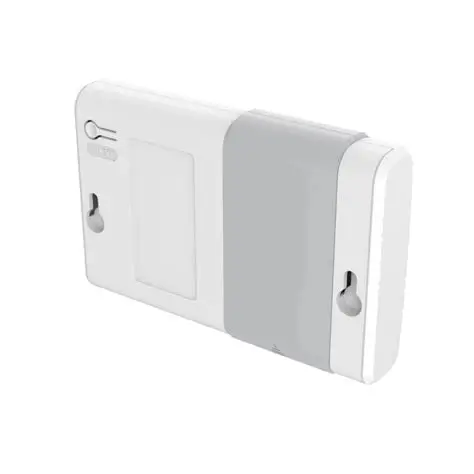

Compact design for wall mounting in various environments
Compliant with regulatory standards (CE, FCC, RoHS, LoRaWAN® Certified)

Our solution also includes third-party wireless sensor monitoring systems, enabling you to access data and set alerts via SMS and email. Ask about our zero-touch provisioning service, where sensors are pre-configured and ready to deploy.

Parameters

Power Supply	2 × 1.5V AA Alkaline Batteries or Type-C Port
Battery Life	AM104: 1.5 Years, AM107: 1 Year (Tested in laboratory conditions)
Operating Temperature	0°C to +45°C
Relative Humidity	0% to 100% (non-condensing)
Ingress Protection	IP30
Dimensions	105 × 70.4 × 21.2 mm (4.1 × 2.8 × 0.8 in)
Weight	Approx. 120g

Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm (868 MHz), 20dBm (915 MHz), 19dBm (470 MHz)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A

Display	2.13-inch Black & White E-Ink Screen
PIR Detection Area	94° Horizontal, 82° Vertical, 5m Detection Distance
Light Range	Up to 60,000 lux (Visible + IR, IR)
CO2 Range	400 - 5000 ppm (± 30 ppm + 3% of reading)
TVOC Range	0 - 60,000 ppb (±15% accuracy)
Barometric Pressure Range	300 - 1100 hPa (±1 hPa accuracy)

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions, and lead times, please contact our technical sales team. Our technical sales team is also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
