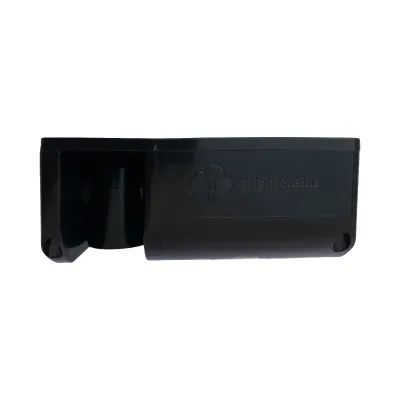

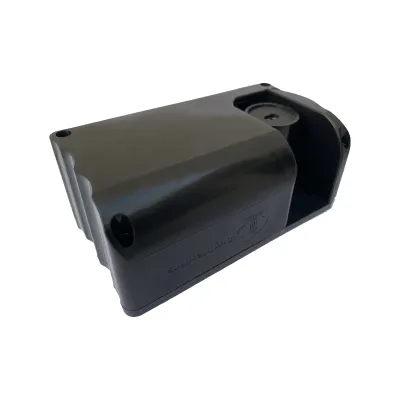

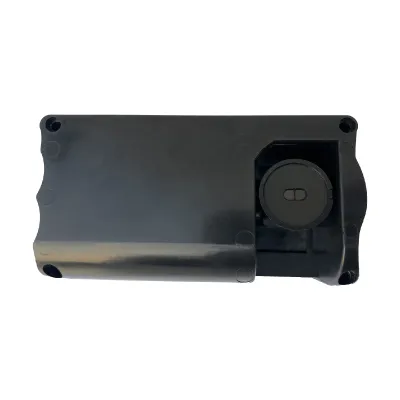

BrighterBins LoRaWAN Sensor

SKU: 416AEUWJ

Details Additional Info

Variants:

Product Description

The BrighterBins LoRaWAN® The LoRaWAN® Ultrasonic and Laser Sensor is an advanced sensor designed to optimise waste management systems through precise fill-level monitoring. Utilising ultrasonic and laser measurement technologies, this sensor delivers timely data on container fill levels, allowing for efficient route planning, cost savings, and reduced environmental impact.

Depending on your preference, this product is available in the following variants:

BrighterBins LoRaWAN®Ultrasonic Sensor (used for liquid)
BrighterBins LoRaWAN®Laser Sensor (used for solid)

Powered by LoRaWAN® technology, the sensor ensures long-range, low-power wireless communication, seamlessly integrating into IoT ecosystems. Its robust and weather-resistant design, coupled with adjustable tunnel angles and long-lasting battery performance, makes it ideal for a variety of bin types and environmental conditions.

This device is highly versatile, allowing to be suitable for a wide range of applications such as:

Smart Waste Management
Industrial Waste Tracking
Environmental Monitoring

*This smart device transmits recorded data to a connected LoRaWAN® gateway. The data is then sent to your chosen third-party platform for visualisation by a LoRaWAN® network server.

Features

Ultrasonic and Laser Technology: Measures fill levels with high precision, ranging from 20 to 450 cm, with ±5% accuracy.
LoRaWAN® Connectivity:
Transmits real-time data over long distances with low power consumption.
Adjustable Sensor Angle: Moveable tunnel design allows flexible mounting to fit 90% of bins.
Temperature Sensor: Monitors ambient temperature and generates fire alarms upon detection.
Configurable Sensing Interval: Adjustable from 10 minutes to 24 hours for tailored data collection.
Zero Maintenance: Built to operate without requiring regular servicing, reducing downtime.

Parameters

Power Supply	14 Ah lithium battery
Battery Life	>7 years (based on 4 transmissions/day)

Measurement Technology	Ultrasonic and Laser
Connectivity	LoRaWAN®
Supported regions	LoraWAN® EU 863 to 870 MHz, LoraWAN® USA 902 to 928 MHz, LoraWAN® AUS 915 to 928 MHz, LoraWAN® IND 865 to 867 MHz
Data Transmission Frequency	Configurable (10 minutes to 24 hours)

Measurement Range	20 cm to 450 cm
Measurement Accuracy	±5%
Temperature Sensor	Monitors ambient temperature; includes fire detection alarm
Operating Temperature	-20°C to +70°C
Ingress Protection	IP-rated for outdoor durability (specific IP rating not provided)
Adjustable Tunnel Angle	adjustable to fit 90% of bins
Fill-Level Monitoring	Outputs as raw distance or percentage fill (e.g., 25%, 50%, 75%)
Installation	Mountable with screws or rivets

Key Documents & Information

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® bin sensors to suit specific project requirements.
