Milesight AM308 Indoor Ambience Monitoring Sensor with 8 Sensors and E-ink Display EU868

SKU: AM308-868M

Details Additional Info Data Sheet Manual

£268.27*

Product Description

The Milesight AM308 is a compact indoor ambience monitoring sensor designed to deliver precise real-time measurements of multiple environmental parameters. With its E-ink display and LoRaWAN® connectivity, it helps ensure optimal indoor comfort and air quality for a wide range of applications.

Featuring sensors for temperature, humidity, CO2, TVOC, barometric pressure, light, PM2.5, PM10, and motion, the AM308 provides actionable insights into indoor environmental conditions. Data is clearly presented on-screen and transmitted securely via LoRaWAN®, making it easy to integrate into smart building and facility management systems.

The AM308 is ideal for use in offices, classrooms, hospitals, retail stores, and other indoor environments where monitoring air quality and comfort levels is critical. Its multiple power options, intelligent display, and compatibility with Milesight IoT Cloud enable simple deployment and long-term reliable operation.

Features

Integrated multi-sensor measurement (temperature, humidity, CO2, TVOC, PM2.5, PM10, light, barometric pressure, motion)

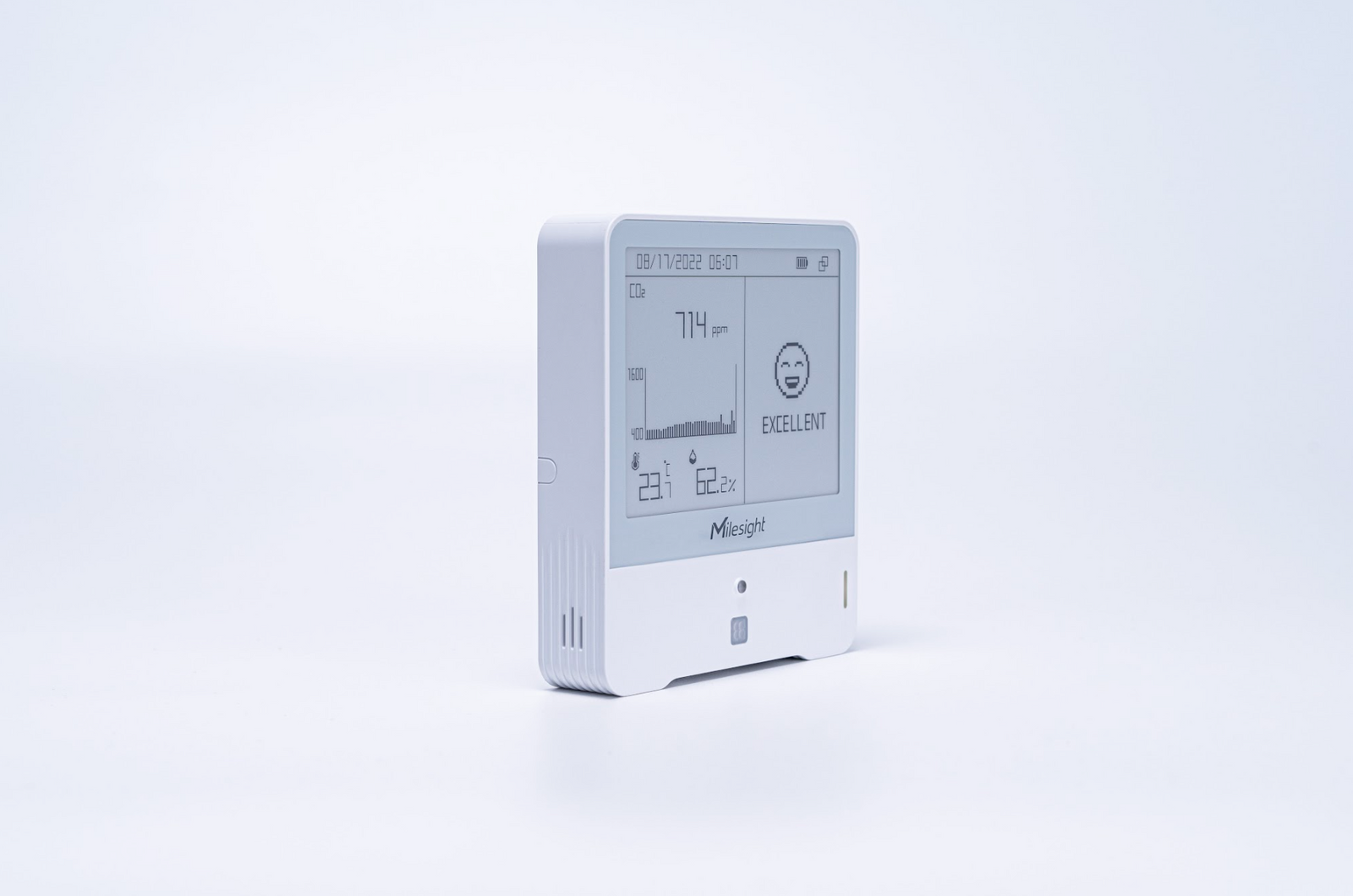

Real-time display on 4.2-inch E-Ink screen with intuitive emoticons
Supports both battery and USB Type-C DC power supply
Traffic light indicator and buzzer for device status and threshold alarms
Onboard data storage with retransmission to prevent data loss
Compatible with all standard LoRaWAN® gateways and network servers
Quick setup and management via Milesight IoT Cloud and Development Platform
Compact design with wall-mount installation options

We can supply third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.

Parameters

Power Supply	4 × 2700 mAh ER14505 Li-SOCl2 replaceable batteries or 5V/1A via Type-C
Battery Life	Up to 3.9 years (SF7, EU868 & US915); varies with settings
Operating Temperature	-20°C to 60°C (E-Ink screen: 0°C to 40°C)
Operating Humidity	10% – 90% RH (non-condensing)
Ingress Protection	IP30
Power Buttons	1 × Power, 1 × Reset
USB Interface	Type-C for power, configuration, or console

Technology	LoRaWAN®
Antenna	Internal
Supported Bands	CN470 / RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power	16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz)
Sensitivity	-137 dBm @ 300 bps
Work Mode	OTAA / ABP, Class A

Dimensions	100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Weight	222.6 g (with batteries)
Housing	ABS (UL94 HB), White
Installation	Wall mounting via 3M tape or screws
Certifications	CE, FCC, ISED; RoHS compliant

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
