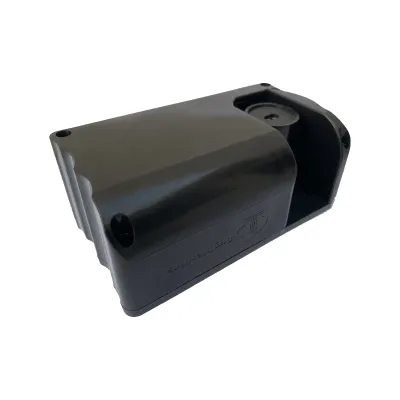

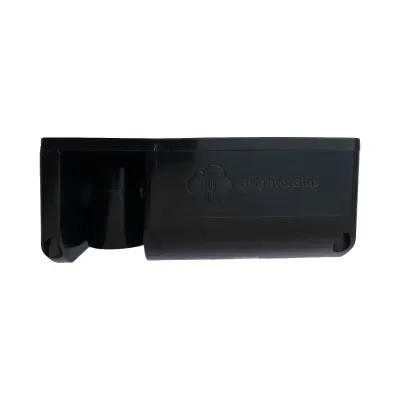

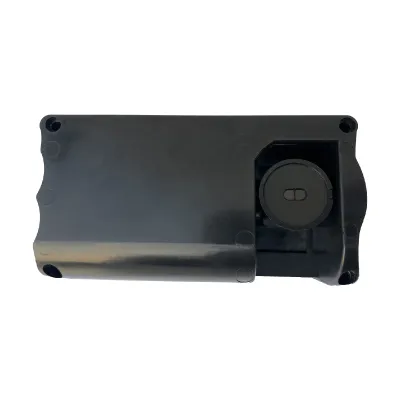

BrighterBins NB-IoT Liquid Waste Bin Sensor

SKU: BBNGTV2I

BrighterBins Ultrasonic NB-IoT waste bin sensor is ideal for remotely monitoring fluid or liquid waste levels and is designed to optimise your waste collections.

Details Additional Info

Variants:

Product Description

The BrighterBins NB-IoT Sensor is a state-of-the-art smart device designed to revolutionise waste management systems through accurate and efficient container fill-level monitoring. Leveraging the precision of ultrasonic and laser sensing technologies, this sensor provides timely data on waste levels, ensuring optimised collection schedules and reducing operational costs.

Depending on your preference, this product is available in the following variants:

BrighterBins NB-IoT Ultrasonic Sensor (used for liquid)
BrighterBins NB-IoT Laser Sensor (used for solid)

Fully compatible with NB-IoT technology, the sensor transmits data wirelessly to backend systems, allowing for seamless integration into IoT ecosystems. Its rugged design, adjustable tunnel angle, and long-lasting battery make it a durable, low-maintenance solution for waste bins in various environmental conditions.

This device is highly versatile, allowing to be suitable for a wide range of applications such as:

Smart Waste Management
Industrial Waste Tracking
Environmental Monitoring

Features

Ultrasonic and Laser Technology: Measures fill levels with high precision, ranging from 20 to 450 cm, with ±5% accuracy.
NB-IoT Connectivity: Transmits real-time data over long distances for reliable remote monitoring.
Adjustable Sensor Angle: Moveable tunnel design allows flexible mounting to fit 90% of bins.
Temperature Sensor: Monitors ambient temperature and generates fire alarms upon detection.
Configurable Sensing Interval: Adjustable from 10 minutes to 24 hours for tailored data collection.
Zero Maintenance: Built to operate without requiring regular servicing, reducing downtime.

We can supply third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.

Parameters

Power Supply	14 Ah lithium battery
Battery Life	>7 years (based on 4 transmissions/day)

Measurement Technology	Ultrasonic and Laser
Connectivity	NB-IoT
Data Transmission Frequency	Configurable (10 minutes to 24 hours)

Measurement Range	20 cm to 450 cm
Measurement Accuracy	±5%
Temperature Sensor	Monitors ambient temperature; includes fire detection alarm
Operating Temperature	-20°C to +70°C
Ingress Protection	IP-rated for outdoor durability (specific IP rating not provided)
Adjustable Tunnel Angle	Yes; adjustable to fit 90% of bins
Fill-Level Monitoring	Outputs as raw distance or percentage fill (e.g., 25%, 50%, 75%)
Installation	Mountable with screws or rivets

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® NAME OF SENSOR TYPE sensors to suit specific project requirements.

Discount trade prices available
Speak to the team
