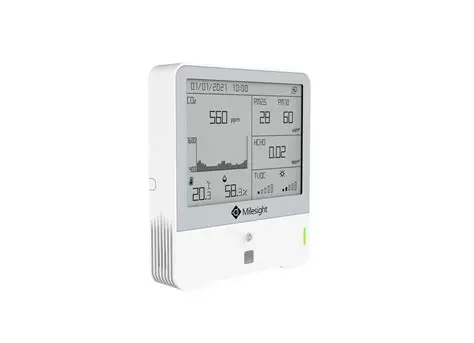

Milesight AM307 Indoor Ambience Monitoring Sensor with 7 Sensors and E-ink Display EU868

SKU: AM307-868M

Measure up to 9 indoor ambient parameters in one smart device with the Milesight AM307 indoor sensor.

Details Additional Info Data Sheet Manual

£208.08*

Product Description

Introducing the AM307 Indoor Ambience Monitoring Sensors, designed to measure a wide range of environmental factors including temperature, humidity, light, CO2 concentration, TVOC, barometric pressure, PM2.5, PM10, and motion. Featuring an E-Ink screen for real-time data display, these sensors provide crucial insights into indoor comfort and air quality. Milesight offers seamless integration with its LoRaWAN® technology, enabling users to manage sensor data remotely using the Milesight Development Platform and IoT Cloud solution.

The AM30x sensors are perfect for various environments, including offices, stores, classrooms, and hospitals. They are equipped with multiple sensors to monitor key environmental parameters and can be powered either by batteries or DC power supply. These sensors also include a traffic light indicator and buzzer for threshold alarms, offering an additional layer of convenience and reliability for users.

Whether you're concerned about air quality, motion detection, or the overall indoor environment, the AM307 sensors provide a comprehensive solution. With a long battery life, clear data display, and easy configuration through NFC or USB Type-C, the AM307 series helps you manage indoor conditions effortlessly, ensuring optimal comfort and environmental control.

Features

Integrated sensors for temperature, humidity, light, CO2, TVOC, barometric pressure, PM2.5, PM10, and motion detection
Clear visual feedback with a 4.2-inch Black & White E-Ink screen
Multiple display modes and emoticons to easily understand comfort levels
Long battery life with replaceable batteries or DC power supply options
Traffic light indicator and buzzer for status and threshold alarms
Data storage of up to 18,000 entries with retransmission to prevent data loss
Compliant with LoRaWAN® standards for easy integration with Milesight gateways and IoT Cloud
Simple management via NFC, PC software, or USB Type-C port
Regulatory certifications: CE, FCC, ISED, RoHS

We also offer third-party wireless sensor monitoring systems that allow you to view data and set alerts via SMS and email. Ask about our zero-touch provisioning service to have your sensors pre-configured and ready to deploy out of the box.

Parameters

Power Supply	4 × 2700mAh ER14505 Li-SOCl2 Replaceable Batteries or 5V/1A via USB Type-C
Battery Life	Around 3.9 years (SF7, EU868 & US915), Around 1 year (SF10, US915)
Operating Temperature	-20°C to +60°C (E-Ink Screen: 0°C to 40°C)
Relative Humidity	10% to 90% (non-condensing)
Ingress Protection	IP30
Dimensions	100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Weight	182.5g (With Batteries), 222.6g (With Batteries)

Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm (868 MHz), 22dBm (915 MHz), 19dBm (470 MHz)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A

Display	4.2-inch Black & White E-Ink Screen
PIR Detection Area	80° Horizontal, 55° Vertical, 5m Detection Distance
Light Range	0 - 60,000 Lux (Visible + IR, IR)
CO2 Range	400 - 5000 ppm (± 30 ppm + 3% of reading)
TVOC Range	1.00 - 5.00 (IAQ Rating)
Barometric Pressure Range	260 - 1260 hPa (± 0.5 hPa accuracy)
PM2.5 & PM10 Range	0 - 1000 μg/m³ (± 10 μg/m³ accuracy for 0-100, ± 10% for 100-1000)

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions, and lead times, please contact our technical sales team. Our technical sales team is also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
