Nexelec RISE 3-in-1 Smart sensor

SKU: X520LS

Monitor indoor air quality conditions with the Nexelec RISE 3-in-1 sensor. Combining CO2, temperature and humidity sensors in one neat device.

Details Data Sheet Manual

£150.66*

Product Description

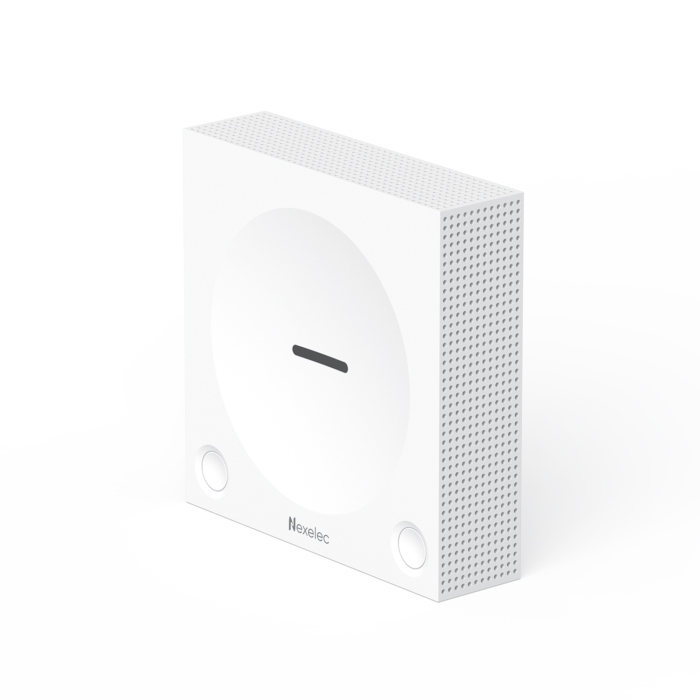

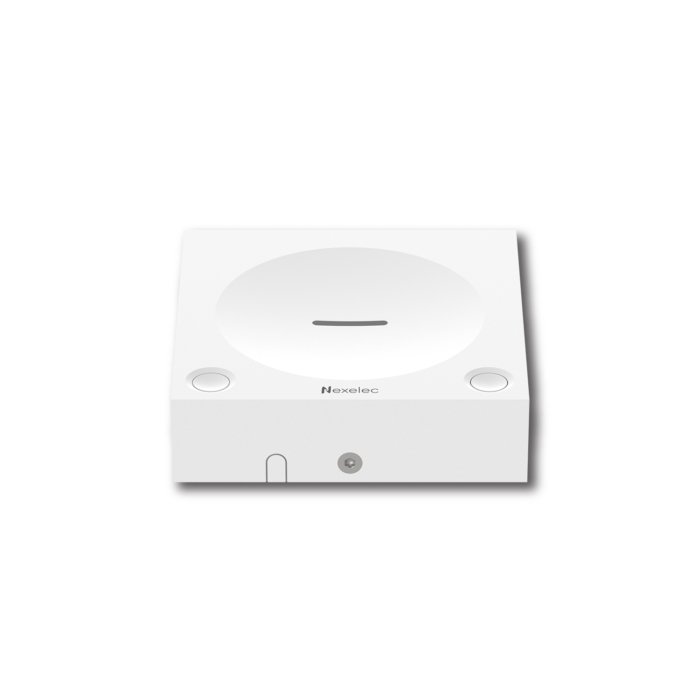

The Nexelec RISE LoRa CO₂ sensor is a 3-in-1 room sensor designed to monitor indoor air quality. With the ability to monitor temperature, humidity and CO₂ in one, the RISE analyses CO₂ levels every 5 minutes (manual configuration is also possible), enabling you to access detailed data about your indoor environments. The data gathered by this LoRa CO₂ sensor can be used to alert occupants when ventilation is needed and build up detailed information about the overall conditions in environments such as:

Office Spaces
Manufacturing Plants
Schools
Healthcare
Public Transport
& more!

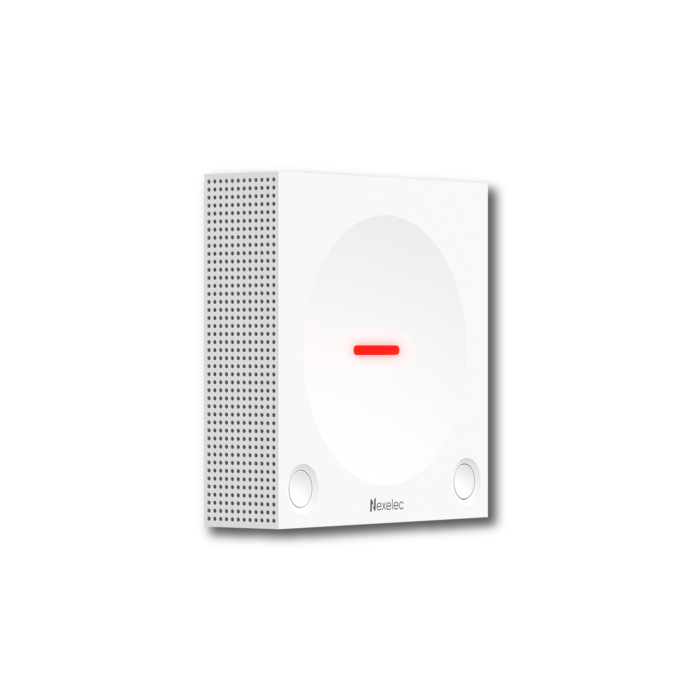

The Nexelec RISE is rigorously tested to guarantee operation in extreme temperatures between -20°C to 50°C and 0 – 99% relative humidity. This device also has a sensor calibration certificate issued by a COFRAC-accredited laboratory. Housed in a sleek unit, the Nexelec RISE LoRa CO₂ sensor is simple to install, with the option to wall mount, flush-mount or free-stand the device. For added functionality, this sensor also features an audible signal and visual light indicator which changes green, orange or red according to the active CO₂ level. The trigger threshold can be remotely configured via wireless NFC or LoRaWAN®. This battery-operated device is completely wireless and has a battery-life of up to 10 years. For those looking to protect their data, the RISE LoRa CO₂ sensor has a built-in micro SD card to provide back up for up to 10 years of sensor data which can help to protect your solutions in the event of a power cut. This smart device transmits recorded data to a connected LoRaWAN® gateway. The data is then sent to the smartphone app and/or your chosen third-party platform for visualisation by a LoRaWAN® network server.

Features

3-in-1 sensor which combines CO₂, temperature and humidity sensors in one
Monitors indoor air quality
Features integrated audible & visual alerters
Saves recorded data on an integrated SD card for back up
Complies with the French standards for measuring CO₂ concentraion indoors
LoRaWAN® Device

Parameters

Power input

2 x SAFT 2600 mAh high-density replaceable batteries

Signal Type

LoRaWAN®

Operating Temperature	-20°C to 50°C
Relative Humidity	0% RH to 99% RH
Size	87mm x 87mm x 23mm

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our LoRaWAN® products are available for distribution across Europe. To find out lead times and shipping costs, please get in touch with our sales team.

Our technical team can also advise as to which products would work best for your IoT project; and help with provisioning devices and setting up your LoRaWAN® network server.
